Power Module MSCSM120HM16CT3AG 1200V 745W Mosfet Array SiC Transistors

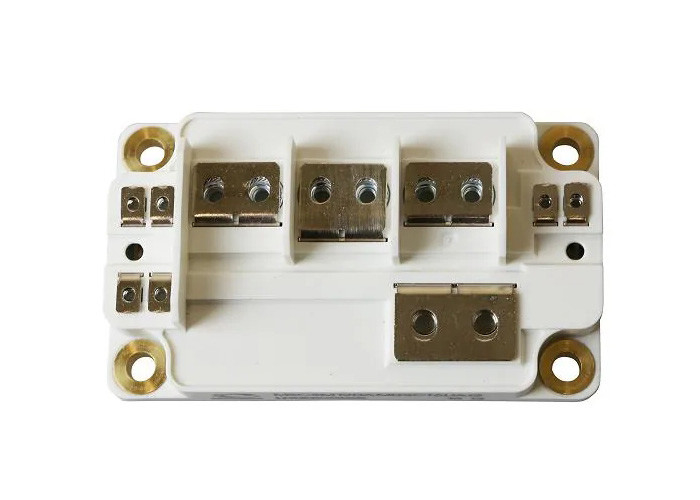

Large Image : Power Module MSCSM120HM16CT3AG 1200V 745W Mosfet Array SiC Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120HM16CT3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Power Module MSCSM120HM16CT3AG 1200V 745W Mosfet Array SiC Transistors

Description

Part Number:	MSCSM120HM16CT3AG	Total Gate Charge:	1602nC
Configuration:	4 N-Channel	Gate Charge:	464nC
Power - Max:	745W	RGON:	3.2 Ω

Power Module MSCSM120HM16CT3AG 1200V 745W Mosfet Array SiC Transistors

Product Description Of MSCSM120HM16CT3AG

MSCSM120HM16CT3AG offer a low profile, direct mounting to the heatsink, an internal thermistor for temperature monitoring, and an extended temperature range.

Specification Of MSCSM120HM16CT3AG

Part Number:	MSCSM120HM16CT3AG	Input Capacitance (Ciss) (Max) @ Vds:	19800pF @ 1000V
Technology:	SiC	Drain-Source On Resistance:	3.9mΩ
Gate Threshold Voltage:	3.3V	Gate-Source Leakage Current:	900nA

Features Of MSCSM120HM16CT3AG

Internal thermistor for temperature monitoring
Extended temperature range
High-efficiency converter
Outstanding performance at high-frequency operation
