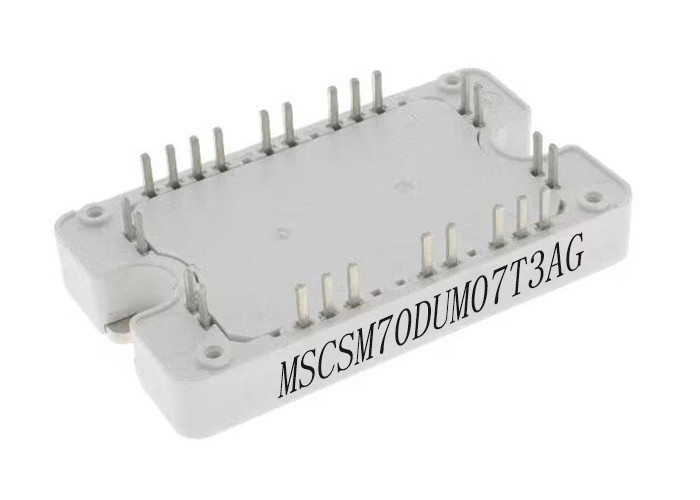

2N-Channel Common Source Silicon Carbide MSCSM70DUM07T3AG MOSFET Power Module 988W

Large Image : 2N-Channel Common Source Silicon Carbide MSCSM70DUM07T3AG MOSFET Power Module 988W

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM70DUM07T3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

2N-Channel Common Source Silicon Carbide MSCSM70DUM07T3AG MOSFET Power Module 988W

Description

Part Number:	MSCSM70DUM07T3AG	Power - Max:	988W (Tc)
Operating Temperature:	-40°C ~ 175°C (TJ)	Mounting Type:	Chassis Mount
Package / Case:	Module	Supplier Device Package:	SP3F

2N-Channel Common Source Silicon Carbide MSCSM70DUM07T3AG MOSFET Power Module 988W

Product Description Of MSCSM70DUM07T3AG

MSCSM70DUM07T3AG is 700V/353A dual common source silicon carbide (SiC) MOSFET power module.

Specification Of MSCSM70DUM07T3AG

Part Number	MSCSM70DUM07T3AG
Technology	Silicon Carbide (SiC)
Configuration	2 N-Channel (Dual) Common Source
Drain to Source Voltage (Vdss)	700V
Current - Continuous Drain (Id) @ 25°C	353A (Tc)
Rds On (Max) @ Id, Vgs	6.4mOhm @ 120A, 20V
Vgs(th) (Max) @ Id	2.4V @ 12mA
Gate Charge (Qg) (Max) @ Vgs	645nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	13500pF @ 700V

Electrical Schematic Of MSCSM70DUM07T3AG

2N-Channel Common Source Silicon Carbide MSCSM70DUM07T3AG MOSFET Power Module 988W 0

Other Supply Product Types

Part Number	Package
AXA463061P	SMD
ZXGD3105N8TC	SOP-8
FMS6502MTC24X	TSSOP24
LTC3547BEDDB	DFN-8
IW1788-46	SOP8
ACPL-M61T	SOP5

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
