Power Module MSCSM120HM50CT3AG Mosfet Array Discrete Semiconductor Transistors

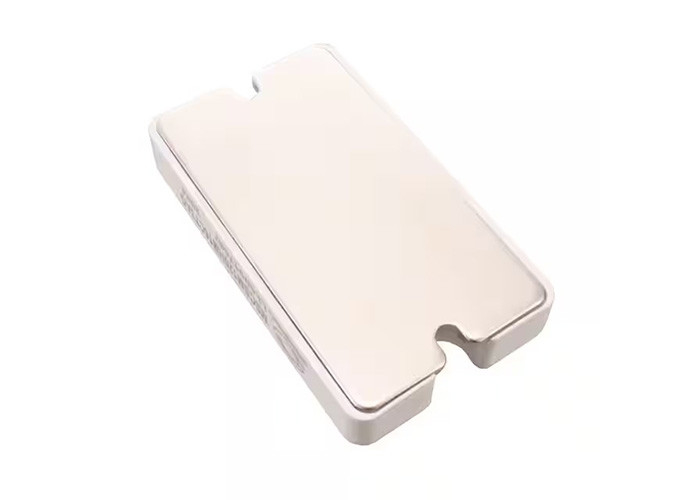

Large Image : Power Module MSCSM120HM50CT3AG Mosfet Array Discrete Semiconductor Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120HM50CT3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Power Module MSCSM120HM50CT3AG Mosfet Array Discrete Semiconductor Transistors

Description

Part Number:	MSCSM120HM50CT3AG	Reverse Voltage:	1.2 KV
Gate-Source Voltage:	- 10 V, + 25 V	Forward Voltage:	1.5 V At 15 A
Vds:	1.2 KV	Vgs:	1.8 V

Power Module MSCSM120HM50CT3AG Mosfet Array Discrete Semiconductor Transistors

Product Description Of MSCSM120HM50CT3AG

MSCSM120HM50CT3AG modules operate at 1.2kV reverse voltage,-10V to 25V gate-source voltage range,310W/560W power dissipation, and 79A/150A continuous drain current.

Specification Of MSCSM120HM50CT3AG

Part Number:	MSCSM120HM50CT3AG	Turn-On Energy:	20.3mJ
ISD:	270 A	Rise Time:	30ns
Current - Continuous Drain:	89A	Turn-On Delay Time:	153ns

Features Of MSCSM120HM50CT3AG

Ultra-low weight and profile
Kelvin source for easy drive
SP3F substrate with thick copper for improved thermal performance

Other Supply Product Types

Part Number	Package
MSP430F2274IRHAR	QFN40
MK60DN256VLQ10	QFP144
THS7327PHPR	HTQFP-48
PCM5100APWR	TSSOP20
IRF8302MTRPBF	SMD
841S102EGILF	TSSOP-20

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
