Automotive IGBT Modules MSCSM70DUM017AG 2N-Channel SiC MOSFET Power Module 700V

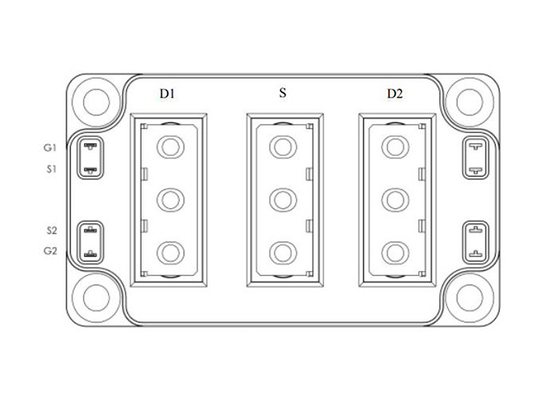

Large Image : Automotive IGBT Modules MSCSM70DUM017AG 2N-Channel SiC MOSFET Power Module 700V

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM70DUM017AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCSM70DUM017AG 2N-Channel SiC MOSFET Power Module 700V

Description

Part Number:	MSCSM70DUM017AG	Configuration:	2 N-Channel (Dual) Common Source
Drain To Source Voltage (Vdss):	700V	Technology:	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id:	2.4V @ 36mA	Rds On (Max) @ Id, Vgs:	2.1mOhm @ 360A, 20V

Automotive IGBT Modules MSCSM70DUM017AG 2N-Channel SiC MOSFET Power Module 700V

Product Description Of MSCSM70DUM017AG

MSCSM70DUM017AG is a 700V/1021A 2 N-Channel (Dual) Common Source silicon carbide (SiC) MOSFET power module.

Specification Of MSCSM70DUM017AG

Part Number	MSCSM70DUM017AG
Input Capacitance (Ciss) (Max) @ Vds	40500pF @ 700V
Power - Max	2750W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module

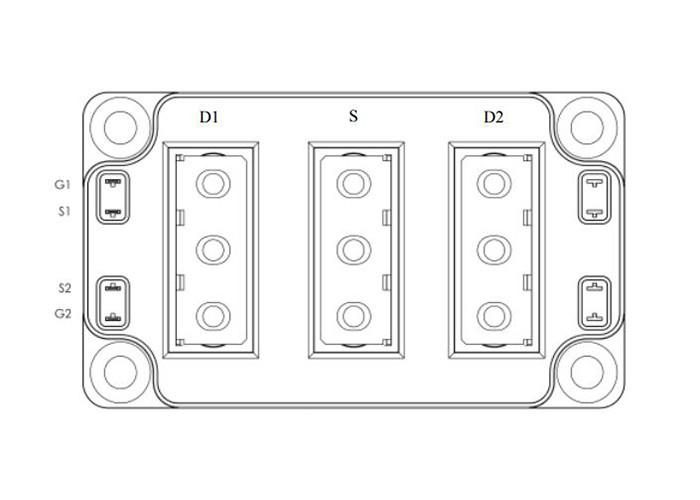

Electrical Schematic Of MSCSM70DUM017AG

Automotive IGBT Modules MSCSM70DUM017AG 2N-Channel SiC MOSFET Power Module 700V 0

Other Supply Product Types

Part Number	Package
STM32F429IIT6	LQFP176
STM32F051C8T6	LQFP48
STM8S005K6T6CTR	LQFP-32
EKMC1603111	DIP-3
AN87C196CB20	PLCC84
IPW60R125CP	TO-247

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
