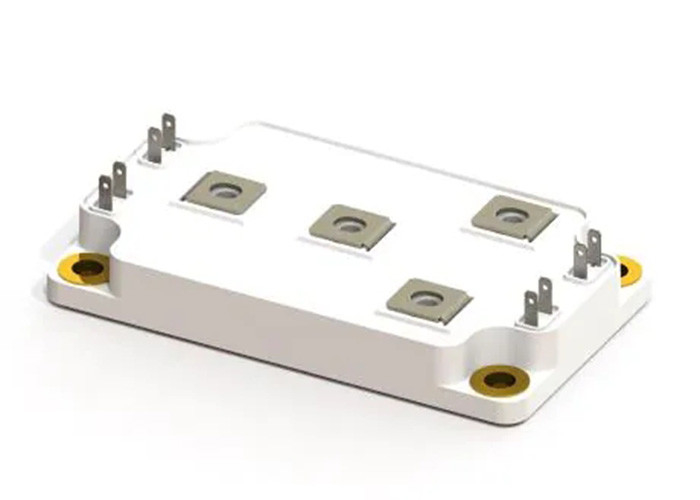

Discrete Semiconductor Transistors MSCSM70HM05CAG 700V Automotive IGBT Modules

Discrete Semiconductor Transistors MSCSM70HM05CAG 700V Automotive IGBT Modules
Discrete Semiconductor Transistors MSCSM70HM05CAG 700V Automotive IGBT Modules

Large Image :  Discrete Semiconductor Transistors MSCSM70HM05CAG 700V Automotive IGBT Modules

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MSCSM70HM05CAG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Module
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

Discrete Semiconductor Transistors MSCSM70HM05CAG 700V Automotive IGBT Modules

Description
Part Number: MSCSM70HM05CAG Vf: 1.5 V
Technology: SiC Vr: 700 V
Mounting Style: Screw Mounts Minimum Operating Temperature: - 40 C

Discrete Semiconductor Transistors MSCSM70HM05CAG 700V Automotive IGBT Modules



Product Description Of MSCSM70HM05CAG

MSCSM70HM05CAG Silicon Carbide (SiC) Power Modules combine a formidable array of technologies into a single package, optimized for reliability, efficiency, space-saving, and reduced assembly time.



Specification Of MSCSM70HM05CAG

Part Number:

MSCSM70HM05CAG

Power - Max:

365W (Tc)

Input Capacitance (Ciss) (Max) @ Vds:

4500pF @ 700V

Gate Charge (Qg) (Max) @ Vgs:

215nC @ 20V

Vgs(Th) (Max) @ Id:

2.4V @ 4mA

Rds On (Max) @ Id, Vgs:

19mOhm @ 40A, 20V



Applications Of MSCSM70HM05CAG

  • Electric vehicle/hybrid electric vehicle (EV/HEV) powertrain and kinetic energy recovery systems (KERSs)

  • Aircraft actuation systems

  • Power generation systems

  • Switched-mode power supplies
