Automotive IGBT Modules MSCSM170DUM039AG 2N-Channel Common Source MOSFET Arrays

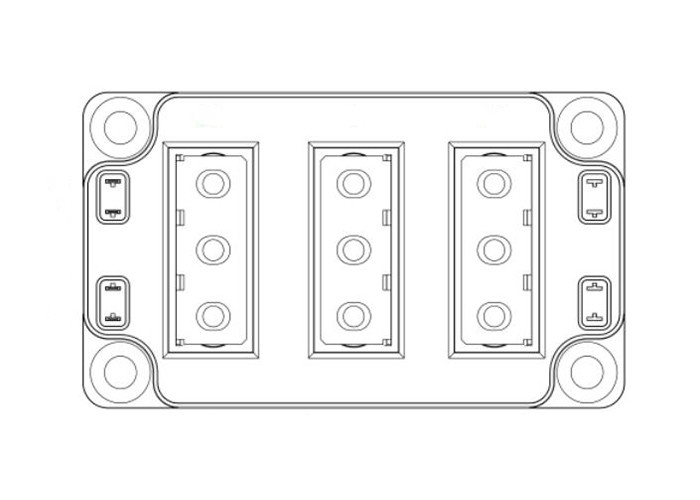

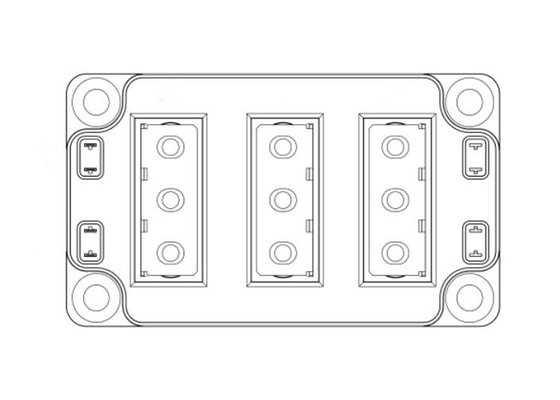

Large Image : Automotive IGBT Modules MSCSM170DUM039AG 2N-Channel Common Source MOSFET Arrays

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM170DUM039AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCSM170DUM039AG 2N-Channel Common Source MOSFET Arrays

Description

Part Number:	MSCSM170DUM039AG	Package / Case:	Module
Drain-Source Voltage(Max):	1700V	Drain-Source ON Resistance(Max):	5mΩ
Pulsed Drain Current(Max):	1000A	Power Dissipation(TC = 25 °C) - Max:	2400W

Automotive IGBT Modules MSCSM170DUM039AG 2N-Channel Common Source MOSFET Arrays

Product Description Of MSCSM170DUM039AG

MSCSM170DUM039AG is Mosfet Array 1700V/523A Dual Common Source SiC MOSFET Power Module, Chassis Mount.

Specification Of MSCSM170DUM039AG

Part Number	MSCSM170DUM039AG
Drain to Source Voltage (Vdss)	1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C	523A (Tc)
Rds On (Max) @ Id, Vgs	5mOhm @ 270A, 20V
Vgs(th) (Max) @ Id	3.3V @ 22.5mA
Gate Charge (Qg) (Max) @ Vgs	1602nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	29700pF @ 1000V
Power - Max	2400W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount

Transfer Characteristics Of MSCSM170DUM039AG

Automotive IGBT Modules MSCSM170DUM039AG 2N-Channel Common Source MOSFET Arrays 0

Other Supply Product Types

Part Number	Package
ICE40UL1K-CM36AITR1K	QFN
V23026D1021B201	SMD
MRF24WG0MAT-I/RM	36-SMD
PSS15S92F6-AG	Module
BD9001F	SOP8
ISL6312ACRZ	QFN48

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
