Transistors MSCSM120HM063CAG Mosfet Arrays Full Bridge SiC Power Module

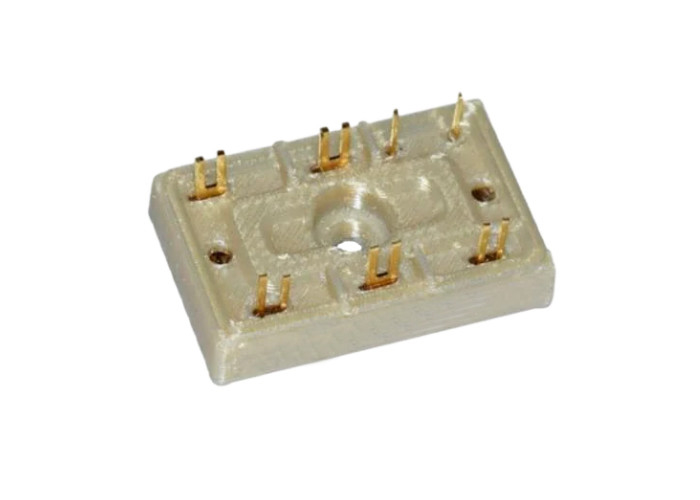

Large Image : Transistors MSCSM120HM063CAG Mosfet Arrays Full Bridge SiC Power Module

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120HM063CAG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Transistors MSCSM120HM063CAG Mosfet Arrays Full Bridge SiC Power Module

Description

Part Number:	MSCSM120HM063CAG	Pulsed Drain Current:	900A
Gate-source Charge:	232nC	Reverse Recovery Current:	76A
Total Capacitance:	864pF	Package Weight:	300g

Transistors MSCSM120HM063CAG Mosfet Arrays Full Bridge SiC Power Module

Product Description Of MSCSM120HM063CAG

MSCSM120HM063CAG is a 700 V/464 A full bridge silicon carbide power module.Operates at 1.3V forward voltage at 90A, 1.6kV reverse voltage,and 1600V maximum repetitive reverse voltage.

Specification Of MSCSM120HM063CAG

Part Number:	MSCSM120HM063CAG	Maximum Operating Temperature:	+ 125 C
Type:	Full Bridge	Gate-Source Voltage:	25 V
Power Dissipation:	1277 W	Gate-Source Leakage Current:	400nA

Features Of MSCSM120HM063CAG

Isolated High Voltage Monitoring, PWM
Compact 40x61mm form factor
2 X 3W output power
RoHS compliant
Up to 7 Unique fault conditions

Other Supply Product Types

Part Number	Package
IS43TR16256A-125KBLI	FBGA96
QCA9882-BR4A	QFN
LPC4357FET256	BGA256
LTC3251EMSE	MSOP10
MP4566DD	QFN-8
BQ40Z50RSMR	VQFN32
