Integrated Circuit Chip IMBG120R060M1H TO-263-8 1200V SiC Trench MOSFET Transistors

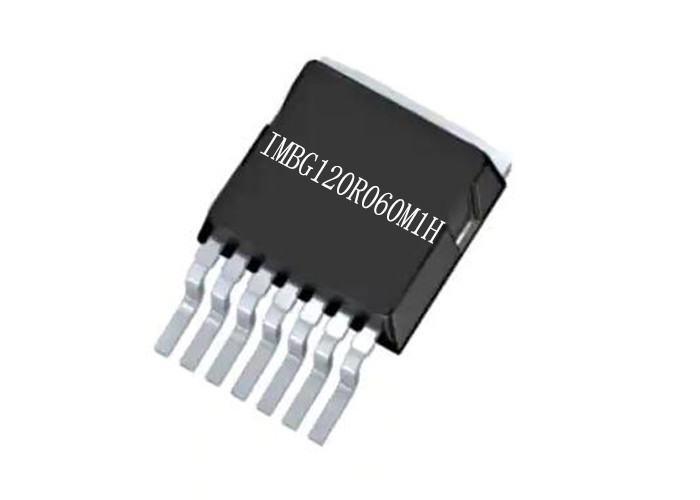

Large Image : Integrated Circuit Chip IMBG120R060M1H TO-263-8 1200V SiC Trench MOSFET Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IMBG120R060M1H

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-263-8
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Integrated Circuit Chip IMBG120R060M1H TO-263-8 1200V SiC Trench MOSFET Transistors

Description

Part Number:	IMBG120R060M1H	Pulsed Drain Current:	94A
Power Dissipation,TC = 25°C:	181W	Power Dissipation,TC = 100°C:	90W
Soldering Temperature:	260°C	Qg - Gate Charge:	34 NC

Integrated Circuit Chip IMBG120R060M1H TO-263-8 1200V SiC Trench MOSFET Transistors

Product Description Of IMBG120R060M1H

IMBG120R060M1H is CoolSiC™ 1200V SiC Trench MOSFET N-Channel Transistors with .XT interconnection technology.

Specification Of IMBG120R060M1H

Part Number:	IMBG120R060M1H
Package / Case:	PG-TO263-7
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	1.2 kV
Id - Continuous Drain Current:	36 A
Rds On - Drain-Source Resistance:	83 mOhms
Vgs - Gate-Source Voltage:	- 7 V, + 23 V

Applications Of IMBG120R060M1H

Energy generation - Solar string inverter and solar optimizer
Industrial power supplies - Industrial UPS
