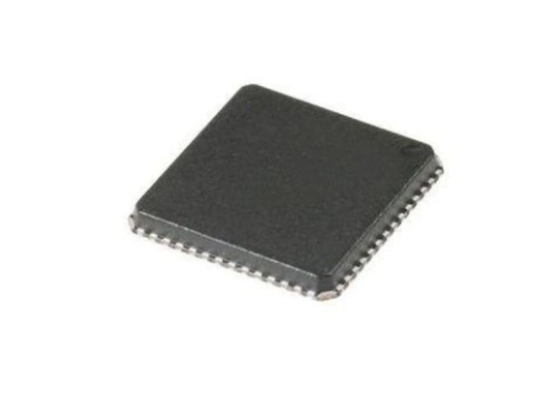

Low Power ADAS1000BSTZ-RL Analog Front End - AFE 5 Channel 19 Bit 64-LQFP

Low Power ADAS1000BSTZ-RL Analog Front End - AFE 5 Channel 19 Bit 64-LQFP

Product Description Of ADAS1000BSTZ-RL

ADAS1000BSTZ-RL are designed to simplify the task of acquiring and ensuring quality ECG signals. They provide a low power, small data acquisition system for biopotential applications. Auxiliary features that aid in better quality ECG signal acquisition include multichannel averaged driven lead, selectable reference drive, fast overload recovery, flexible respiration circuitry returning magnitude and phase information, internal pace detection algorithm operating on three leads, and the option of ac or dc lead-off detection. Several digital output options ensure flexibility when monitoring and analyzing signals. Value-added cardiac post processing is executed externally on a DSP, microprocessor, or FPGA.

Specification Of ADAS1000BSTZ-RL

Features Of ADAS1000BSTZ-RL

• Lead or electrode data available
• Supports AAMI EC11:1991/(R)2001/(R)2007, AAMI EC38 R2007, EC13:2002/(R)2007, IEC60601-1 ed. 3.0 b:2005, IEC60601-2-25 ed. 2.0 :2011, IEC60601-2-27 ed. 2.0 b:2005, IEC60601-2-51 ed. 1.0 b: 2005
• Fast overload recovery
• Low or high speed data output rates
• Serial interface SPI-/QSPI™-/DSP-compatible

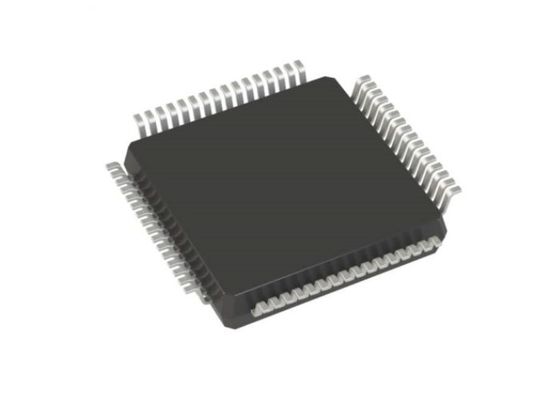

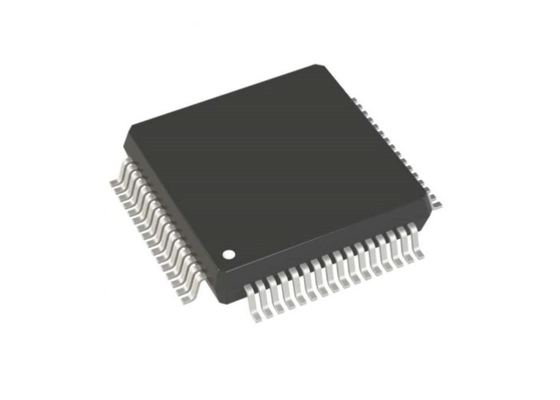

• 64-lead LQFP package (10 mm × 10 mm body size)

Applications Of ADAS1000BSTZ-RL

• ECG: AED, cardiac defibrillators, ambulatory monitors, pace maker programmer, patient transport, stress testing
