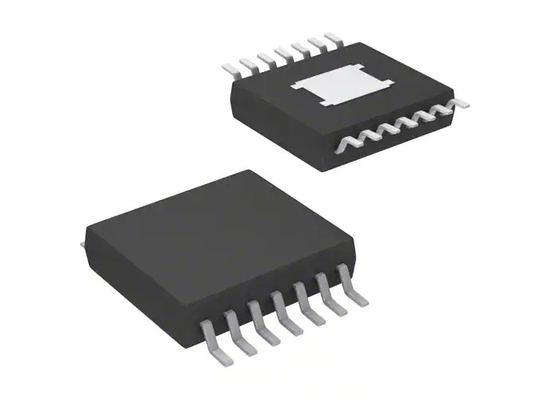

Power Management IC TPS55340PWPR 2.9V DC DC Switching Regulators 14-HTSSOP

Power Management IC TPS55340PWPR 2.9V DC DC Switching Regulators 14-HTSSOP

Product Description Of TPS55340PWPR

TPS55340PWPR is a monolithic, nonsynchronous,switching regulator with integrated 5-A, 40-V power switch.The device can be configured in several standard switching-regulator topologies, including boost, SEPIC, and isolated flyback. The device has a wide input voltage range to support applications with input voltage from multicell batteries or regulated 3.3-V, 5-V, 12-V, and 24-V power rails.

Specification Of TPS55340PWPR

Features Of TPS55340PWPR

• Internal 5-A, 40-V low-side MOSFET switch

• 2.9-V to 32-V input voltage range

• ±0.7% reference voltage

• 0.5-mA operating quiescent current

• 2.7-µA shutdown supply current

• Fixed frequency current mode PWM control

• Frequency adjustable from 100 kHz to 1.2 MHz

• Synchronization capability to external clock

• Adjustable soft-start time

• Pulse skipping for higher efficiency at light loads

• Cycle-by-cycle current limit, thermal shutdown,and UVLO protection

Applications Of TPS55340PWPR

• 3.3-V, 5-V, 12-V, 24-V power conversion

• Boost, SEPIC, and flyback topologies

• Thunderbolt port, USB type-C power delivery,power docking for tablets, and portable PCs

• Industrial power systems

• ADSL modems
