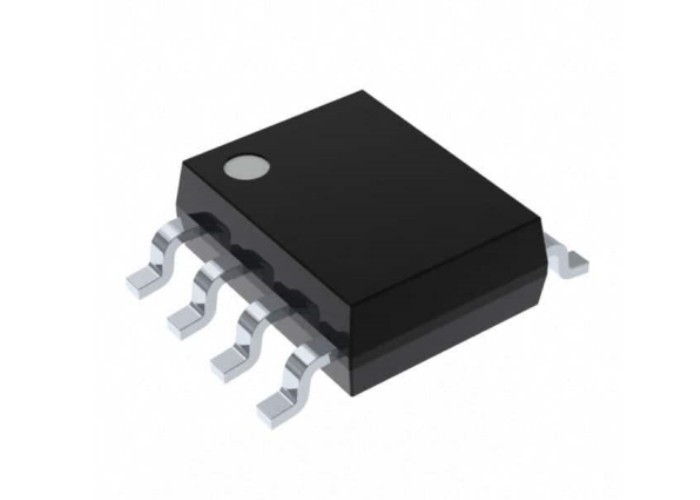

5000Vrms MAX22245BAWA+ 2 Channel Reinforced Diigital Isolator 25Mbps CMTI 8-SOIC

5000Vrms MAX22245BAWA+ 2 Channel Reinforced Diigital Isolator 25Mbps CMTI 8-SOIC

Product Description Of MAX22245BAWA+

The MAX22245BAWA+ are a family of 2-channel reinforced, fast, low-power digital galvanic isolators using proprietary process technology. All devices feature reinforced isolation for a withstand voltage rating of 5kVRMS for 60 seconds. Both automotive and general-purpose devices are rated for operation at ambient temperatures of -40°C to +125°C.

Product Attributes Of MAX22245BAWA+

Features Of MAX22245BAWA+

• AEC-Q100 Qualification for /V devices
• Reinforced Galvanic Isolation for Digital Signals
• 8-SOIC with 8mm of Creepage and Clearance
• Withstands 5kVRMS for 60s (VISO)
• Continuously Withstands 848VRMS (VIOWM)
• Withstands ±12.8kV Surge Between GNDA and GNDB with 1.2/50μs Waveform
• High CMTI (50kV/μs, typ)
• Low Power Consumption
• 0.78mW per Channel at 1Mbps with VDD_ = 1.8V
• 1.47mW per Channel at 1Mbps with VDD_ = 3.3V
• 3.28mW per Channel at 100Mbps with VDD_ = 1.8V
• Low Propagation Delay and Low Jitter
• Maximum Data Rate Up to 200Mbps
• Low Propagation Delay 7ns (typ) at VDD_ = 3.3V
• Clock Jitter RMS 7.5ps (typ)
• Safety Regulatory Approvals
• UL According to UL1577
• cUL According to CSA Bulletin 5A
• VDE 0884-11 Reinforced Insulation (Pending)

Applications Of MAX22245BAWA+

• Automotive
• Hybrid Electric Vehicle
• Chargers
• Battery Management Systems (BMS)
• Inverters

Simplified Application Diagram Of MAX22245BAWA+

Pin Description Of MAX22245BAWA+
