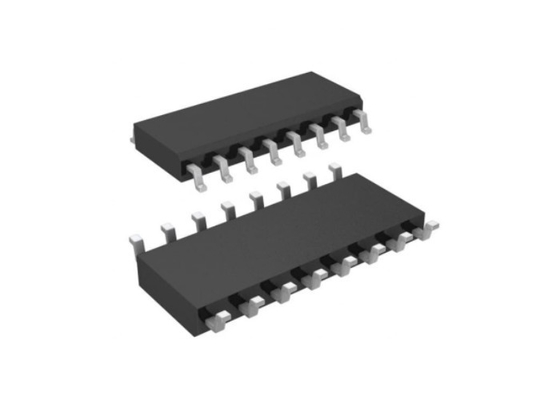

ICs Chip MAX14931DASE+ General Purpose Digital Isolator 2750Vrms 4 Channel 1Mbps

ICs Chip MAX14931DASE+ General Purpose Digital Isolator 2750Vrms 4 Channel 1Mbps

Product Description Of MAX14931DASE+

The MAX14931DASE+ are a family of 4-channel 2.75kVRMS digital isolators utilizing Maxim’s proprietary process technology. The MAX14931DASE+ are 4-channel 1kVRMS digital isolators in smaller footprint QSOP packages. The MAX14931DASE+ transfers digital signals between circuits with different power domains at ambient temperatures up to +125°C.

Specification Of MAX14931DASE+

Features Of MAX14931DASE+

• Robust galvanic isolation of digital signals
• Withstands 2.75kVRMS for 60s (VISO) (MAX14930–MAX14932)
• Many options support broad applications
• 3 Data rates (1Mbps, 25Mbps, 150Mbps)
• 3 Channel direction configuration
• 2 Output default states (high or low)
• 3 Packages (3.8mm, 4mm, or 8mm creepage and clearance)
• Interfaces directly with most micros and FPGAs
• Accepts 1.71V to 5.5V supplies
• Low power consumption at high data rates
• At 1.8V
• 2.5mA per channel typical at 1Mbps
• 5.25mA per channel typical at 100Mbps
• At 3.3V
• 2.6mA per channel typical at 1Mbps
• 7.1mA per channel typical at 100Mbps

Applications Of MAX14931DASE+

• Fieldbus Communications for Industrial Automation
• Isolated SPI, RS-232, RS-485/RS-422
• General Multichannel Isolation Applications
• Battery Management
• Medical Systems

Functional Diagram Of MAX14931DASE+
