MOSFETs Transistors MSC035SMA070B Integrated Circuit Chip TO-247-3 N-Channel

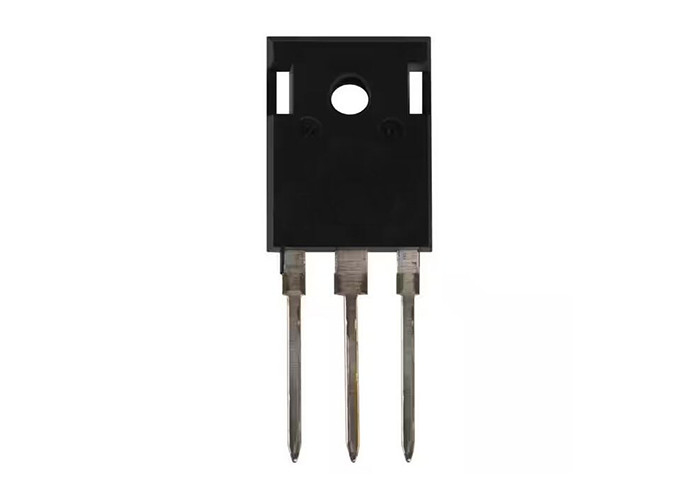

Large Image : MOSFETs Transistors MSC035SMA070B Integrated Circuit Chip TO-247-3 N-Channel

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSC035SMA070B

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-247-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

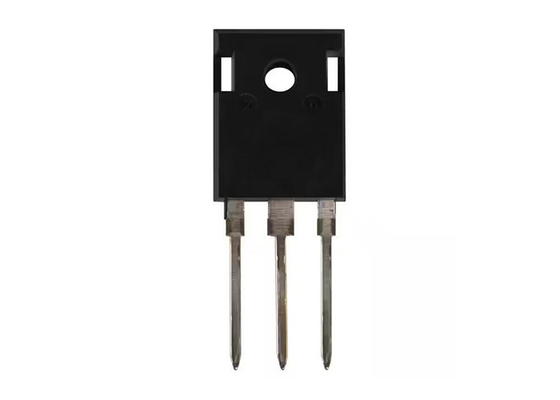

MOSFETs Transistors MSC035SMA070B Integrated Circuit Chip TO-247-3 N-Channel

Description

Part Number:	MSC035SMA070B	Operating Temperature(Max):	175°C (TJ)
Id - Continuous Drain Current:	77 A	Technology:	SiCFET (Silicon Carbide)
Qg - Gate Charge:	99 NC	Operating Temperature(Min):	-55°C (TJ)

MOSFETs Transistors MSC035SMA070B Integrated Circuit Chip TO-247-3 N-Channel

Product Description Of MSC035SMA070B

MSC035SMA070B is a 700 V, 35 mΩ SiC MOSFET in a TO-247 package. Fast and reliable body diode, Superior avalanche ruggedness.

Specification Of MSC035SMA070B

Part Number	MSC035SMA070B
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	77A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	44mOhm @ 30A, 20V
Vgs(th) (Max) @ Id	2.7V @ 2mA
Gate Charge (Qg) (Max) @ Vgs	99 nC @ 20 V
Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	2010 pF @ 700 V

VGS(th) vs. Junction Temperature Of MSC035SMA070B

MOSFETs Transistors MSC035SMA070B Integrated Circuit Chip TO-247-3 N-Channel 0
