Integrated Circuit Chip MSC015SMA070S 700V Silicon Carbide N-Channel Power MOSFET

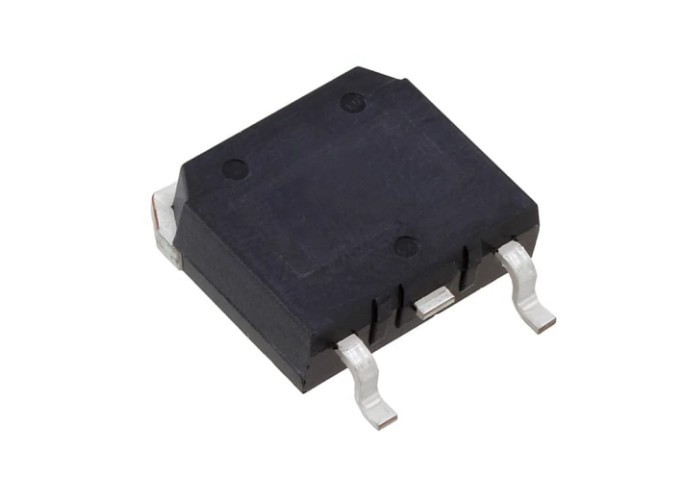

Large Image : Integrated Circuit Chip MSC015SMA070S 700V Silicon Carbide N-Channel Power MOSFET

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSC015SMA070S

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	D3PAK-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Integrated Circuit Chip MSC015SMA070S 700V Silicon Carbide N-Channel Power MOSFET

Description

Part Number:	MSC015SMA070S	Transistor Polarity:	N-Channel
Number Of Channels:	1 Channel	Vgs - Gate-Source Voltage:	- 10 V, + 23 V
Vgs Th - Gate-Source Threshold Voltage:	1.9 V	Qg - Gate Charge:	215 NC

Integrated Circuit Chip MSC015SMA070S 700V Silicon Carbide N-Channel Power MOSFET

Product Description Of MSC015SMA070S

The MSC015SMA070S device is a 700 V, 15 mΩ SiC MOSFET in a TO-268 (D3PAK) package.

Specification Of MSC015SMA070S

Part Number:	MSC015SMA070S	FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)	Drain To Source Voltage (Vdss):	700 V
Current - Continuous Drain (Id) @ 25°C:	126A (Tc)	Operating Temperature:	-55°C ~ 175°C (TJ)

Features Of MSC015SMA070S

Low capacitances and low gate charge
Fast switching speed due to low internal gate resistance (ESR)
Stable operation at high junction temperature, TJ(max) = 175 °C
Fast and reliable body diode
Superior avalanche ruggedness
RoHS compliant

Applications Of MSC015SMA070S

PV inverter, converter, and industrial motor drives
Smart grid transmission and distribution
Induction heating and welding

Block Diagram Of MSC015SMA070S

Integrated Circuit Chip MSC015SMA070S 700V Silicon Carbide N-Channel Power MOSFET 0
