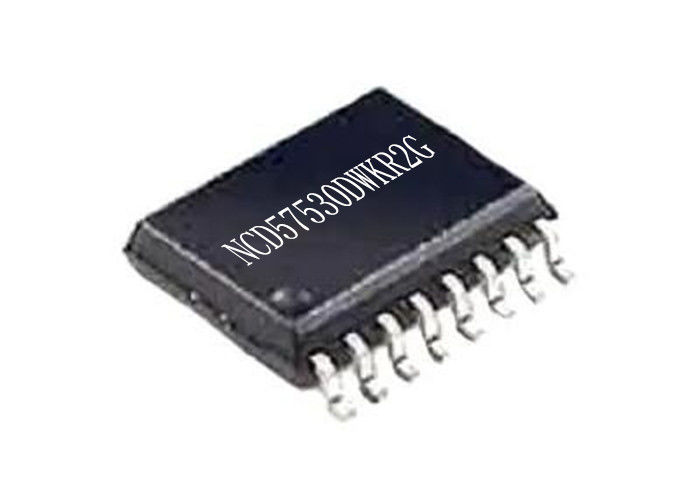

Gate Driver IC NCD57530DWKR2G 16-SOIC Isolated Dual Channel IGBT 5000Vrms IC Chips

Gate Driver IC NCD57530DWKR2G 16-SOIC Isolated Dual Channel IGBT 5000Vrms IC Chips​

Product Description Of NCD57530DWKR2G

NCD57530DWKR2G is high−current two channel isolated IGBT gate drivers with 5 kVrms internal galvanic isolation from input to each output and functional isolation between the two output channels.

Specification Of NCD57530DWKR2G

Features Of NCD57530DWKR2G

• High Peak Output Current (±6.5 A)
• Configurable as a Dual Low−Side or Dual High−Side or Half−Bridge Driver
• Programmable Overlap or Dead Time control
• Disable Pin to Turn Off Outputs for Power Sequencing (NCx57540)
• Enable Pin for Independent Driver Control (NCx57530)
• IGBT Gate Clamping during Short Circuit
• Short Propagation Delays with Accurate Matching
• Tight UVLO Thresholds on all Power Supplies
• 3.3 V, 5 V, and 15 V Logic Input
• 5 kVrms Galvanic Isolation from Input to each Output and 1.5 kVrms Differential Voltage between Output Channels
• 1200 V Working Voltage (per VDE0884−11 Requirements)
• High Common Mode Transient Immunity
• Case 752AJ for Improved Insulation Between Output Channels
