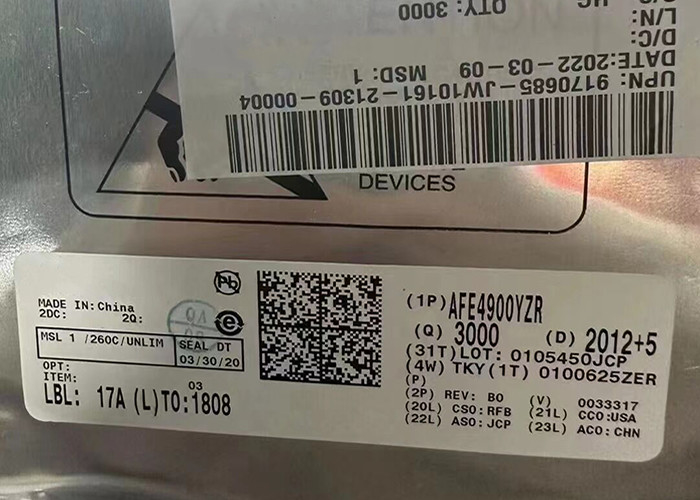

Analog Front End AFE4900YZR 30-XFBGA Integrated AFE 1kHz Integrated Circuit Chip

Analog Front End AFE4900YZR 30-XFBGA Integrated AFE 1kHz Integrated Circuit Chip​

Product Description Of AFE4900YZR

AFE4900YZR is an analog front-end (AFE) for synchronized electrocardiogram (ECG), photoplethysmogram (PPG) signal acquisition. The device can also be used for optical bio-sensing applications, such as heart-rate monitoring (HRM) and saturation of peripheral capillary oxygen (SpO2).

Specification Of AFE4900YZR

Features Of AFE4900YZR

• Synchronized PPG, ECG signal acquisition at data rates up to 1 kHz
• Standalone ECG acquisition up to 4 kHz
• Input bias: 1-lead ECG with RLD bias
• Programmable INA gain: 2.15 to 12.92
• Input noise (1 Hz to 150 Hz): 2.5 µVrms at 1 kHz, 1.25 µVrms at 4-kHz data rate
• AC, DC lead-off detect: 12.5-nA to 100-nA
• Supports three time-multiplexed PD inputs
• 24-Bit representation of current from PD
• DC offset subtraction DAC (Up to ±126-µA) at TIA input for each LED, ambient
• Digital ambient subtraction at ADC output
• Noise filtering with programmable bandwidth
• Transimpedance gain: 10 kΩ to 2 MΩ
• Dynamic range up to 100 dB

Applications Of AFE4900YZR

• Synchronized PPG, ECG for blood pressure estimation
• HRM for wearables, hearables
• Heart-rate variability (HRV)
• Pulse oximetry (SpO2) measurements

Package Outline​ Of AFE4900YZR
