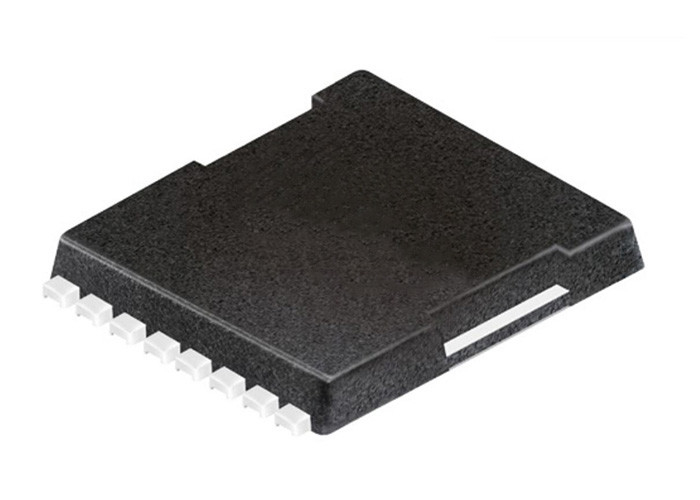

Integrated Circuit Chip IPT020N10N5ATMA1 100V Power MOSFET Transistor 8-PowerSFN

Integrated Circuit Chip IPT020N10N5ATMA1 100V Power MOSFET Transistor 8-PowerSFN
Integrated Circuit Chip IPT020N10N5ATMA1 100V Power MOSFET Transistor 8-PowerSFN
Integrated Circuit Chip IPT020N10N5ATMA1 100V Power MOSFET Transistor 8-PowerSFN Integrated Circuit Chip IPT020N10N5ATMA1 100V Power MOSFET Transistor 8-PowerSFN

Large Image :  Integrated Circuit Chip IPT020N10N5ATMA1 100V Power MOSFET Transistor 8-PowerSFN

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IPT020N10N5ATMA1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-PowerSFN
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip IPT020N10N5ATMA1 100V Power MOSFET Transistor 8-PowerSFN

Description
Part Number: IPT020N10N5ATMA1 Power Dissipation (Max): 273W (Tc)
FET Type: N-Channel Series: OptiMOS™5
Operating Temperature: -55°C ~ 175°C (TJ) Technology: MOSFET (Metal Oxide)

 Integrated Circuit Chip IPT020N10N5ATMA1 100V Power MOSFET Transistor 8-PowerSFN​



Product Description Of IPT020N10N5ATMA1

IPT020N10N5ATMA1 is OptiMOS™ 5 100V industrial power MOSFET Transistors in TO-Leadless is the ideal choice for high switching frequencies.



Specification Of IPT020N10N5ATMA1

Part Number IPT020N10N5ATMA1
Drain to Source Voltage (Vdss)
100 V
Current - Continuous Drain (Id) @ 25°C
31A (Ta), 260A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Rds On (Max) @ Id, Vgs
2mOhm @ 150A, 10V
Vgs(th) (Max) @ Id
3.8V @ 202µA
Gate Charge (Qg) (Max) @ Vgs
152 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
11000 pF @ 50 V


Features Of IPT60R022S7XTMA1

  • Highest system efficiency
  • Low voltage overshoot
  • Less paralleling required
  • Increased power density
  • Reduced switching and conduction losses



Other Electronic Components In Stock​

Part Number Package
MC9S08DZ32ACLF LQFP-48
WM8947ECS BGA
SKY65388-11 QFN
CSD25310Q2 WSON-6
DRV8833RTYR QFN16
MAX14575CETA TDFN-8



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
