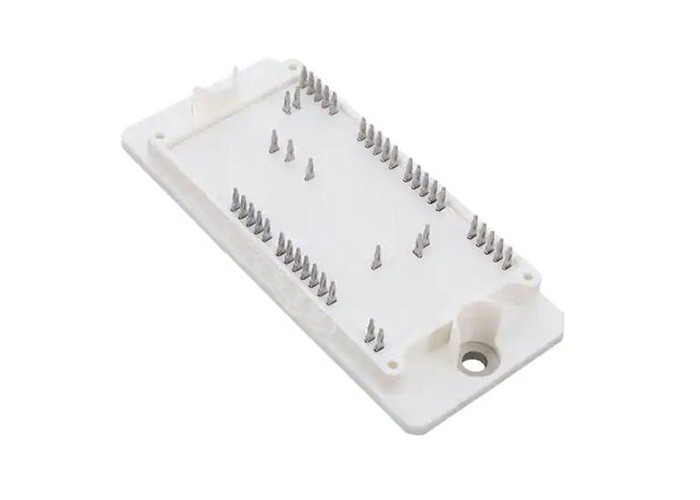

Automotive IGBT Modules NXH400N100H4Q2F2PG Three Level Inverter IGBT Module 959W

Description

Part Number:	NXH400N100H4Q2F2PG	IGBT Type:	Trench Field Stop
Configuration:	Three Level Inverter	Current - Collector (Ic) (Max):	409 A
Power - Max:	959 W	Voltage - Collector Emitter Breakdown (Max):	1000 V

Automotive IGBT Modules NXH400N100H4Q2F2PG Three Level Inverter IGBT Module 959W

Product Description Of NXH400N100H4Q2F2PG

NXH400N100H4Q2F2PG is high−denity, integrated power module combines high−performance IGBTs with rugged anti−parallel diodes.

Specification Of NXH400N100H4Q2F2PG

Part Number	NXH400N100H4Q2F2PG
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 400A
Current - Collector Cutoff (Max)	500 µA
Input Capacitance (Cies) @ Vce	26.093 nF @ 20 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 175°C (TJ)

Features Of NXH400N100H4Q2F2PG

Extremely Efficient Trench with Field Stop Technology
Low Switching Loss Reduces System Power Dissipation
Module Design Offers High Power Density

Other Electronic Components In Stock

Part Number	Package
MT29F4G08ABAFAH4-AAT:F	BGA-63
MT29F2G08ABAEAWP-AATX:E	TSOP48
MT29F4G08ABBDAHC-IT:D	BGA63
MT29F4G08ABAEAWP-IT:E	TSOP48
MT29F4G01ABBFDWB-IT:F	UPDFN8
MT29F64G08AFAAAWP-ITZ:A	TSOP48
