3-Phase TNPC Module NXH25T120L2Q1PG Automotive IGBT Modules 1200V 81W IGBT Modules

Large Image : 3-Phase TNPC Module NXH25T120L2Q1PG Automotive IGBT Modules 1200V 81W IGBT Modules

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH25T120L2Q1PG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

3-Phase TNPC Module NXH25T120L2Q1PG Automotive IGBT Modules 1200V 81W IGBT Modules

Description

Part Number:	NXH25T120L2Q1PG	Current - Collector (Ic) (Max):	25 A
Configuration:	Three Phase Inverter	Operating Temperature:	-40°C ~ 150°C (TJ)
Voltage - Collector Emitter Breakdown (Max):	1200 V	Package / Case:	Module

3-Phase TNPC Module NXH25T120L2Q1PG Automotive IGBT Modules 1200V 81W IGBT Modules

Product Description Of NXH25T120L2Q1PG

NXH25T120L2Q1PG has a two 1200 V, 25 A IGBTs with inverse diodes and two 650 V, 20 A IGBTs with inverse diodes. The module contains an NTC thermistor.

Specification Of NXH25T120L2Q1PG

Part Number	NXH25T120L2Q1PG
Power - Max	81 W
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 25A
Current - Collector Cutoff (Max)	300 µA
Input Capacitance (Cies) @ Vce	8.502 nF @ 20 V
Input	Standard

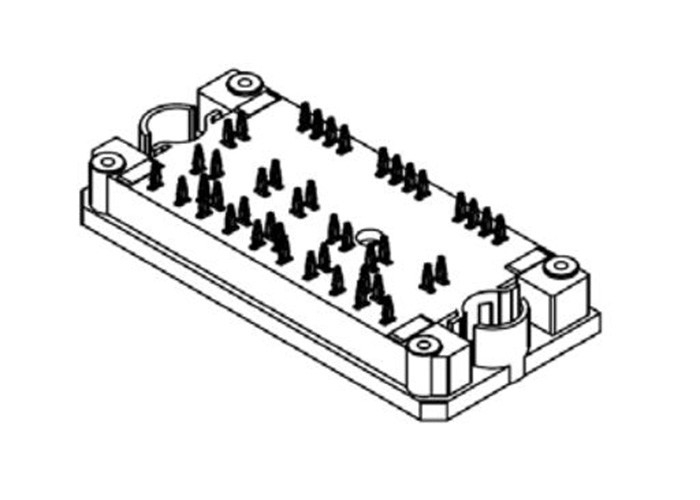

Schematic Diagram Of NXH25T120L2Q1PG
