Power Module NXH80T120L2Q0S2G IGBT Silicon Modules 158W Automotive IGBT Modules

Large Image : Power Module NXH80T120L2Q0S2G IGBT Silicon Modules 158W Automotive IGBT Modules

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH80T120L2Q0S2G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Power Module NXH80T120L2Q0S2G IGBT Silicon Modules 158W Automotive IGBT Modules

Description

Part Number:	NXH80T120L2Q0S2G	Gate-Emitter Leakage Current:	300 NA
Pd - Power Dissipation:	158 W	Product Category:	IGBT Modules
Gate−Emitter Voltage:	±20V	Size:	65.9 Mm X 32.5 Mm X 12 Mm

Power Module NXH80T120L2Q0S2G IGBT Silicon Modules 158W Automotive IGBT Modules

Product Description Of NXH80T120L2Q0S2G

NXH80T120L2Q0S2G The integrated field stop trench IGBTs and fast recovery diodes provide lower conduction losses and switching losses, enabling designers to achieve high efficiency and superior reliability.

Specification Of NXH80T120L2Q0S2G

Part Number:	NXH80T120L2Q0S2G
Product:	IGBT Silicon Modules
Configuration:	Half Bridge
Collector- Emitter Voltage VCEO Max:	1.2 kV
Collector-Emitter Saturation Voltage:	2.05 V
Continuous Collector Current at 25 C:	80 A

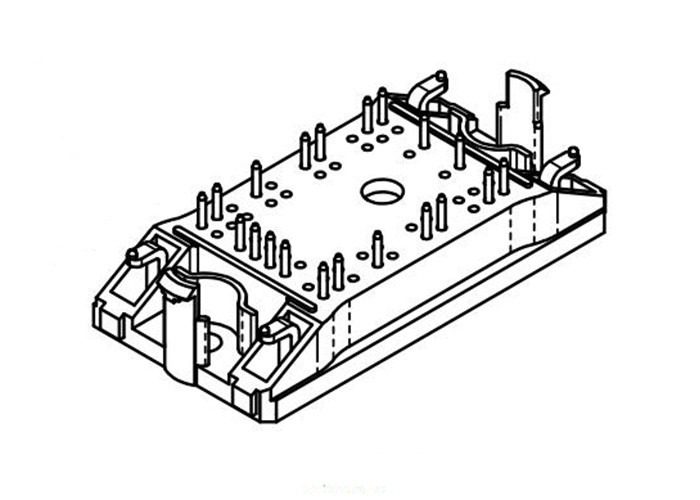

Schematic Diagram Of NXH80T120L2Q0S2G
