Product Details:
|
| Part Number: | NXH450B100H4Q2F2SG | Gate-Emitter Leakage Current: | 800 NA |
|---|---|---|---|
| Pd - Power Dissipation: | 234 W | Configuration: | Dual |
| Input Capacitance (Cies) @ Vce: | 9.342 NF @ 20 V | Supplier Device Package: | 56-PIM (93x47) |
| Highlight: | NXH450B100H4Q2F2SG IGBT Module,234W 1000V IGBT Module,Lead Free IGBT Inverter Module |
||

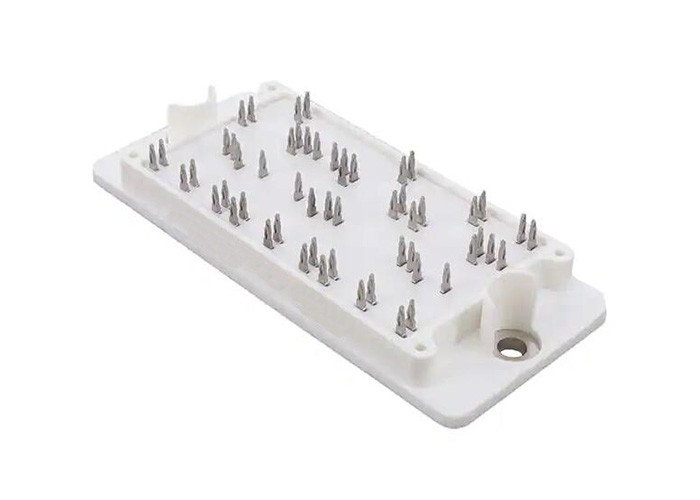

234W 1000V IGBT Module 2 Independent NXH450B100H4Q2F2SG Lead Free
IGBT Module 2 Independent NXH450B100H4Q2F2SG Automotive IGBT Modules 234W 1000V
Product Description Of NXH450B100H4Q2F2SG
NXH450B100H4Q2F2SG a Si/SiC Hybrid three channel symmetric boost module. Each channel contains two 1000 V, 150 A IGBTs, two 1200 V, 30 A SiC diodes and two 1600 V, 30 A bypass diodes. The module contains an NTC thermistor.
Specification Of NXH450B100H4Q2F2SG
| Part Number: | NXH450B100H4Q2F2SG |
| Product Category: | IGBT Modules |
| IGBT Silicon Carbide Modules | |
| Dual | |
| 1 kV | |
| 1.7 V | |
| 101 A |
Features Of NXH450B100H4Q2F2SG
