NXH40T120L3Q1SG Automotive IGBT Modules 1200V Three Phase

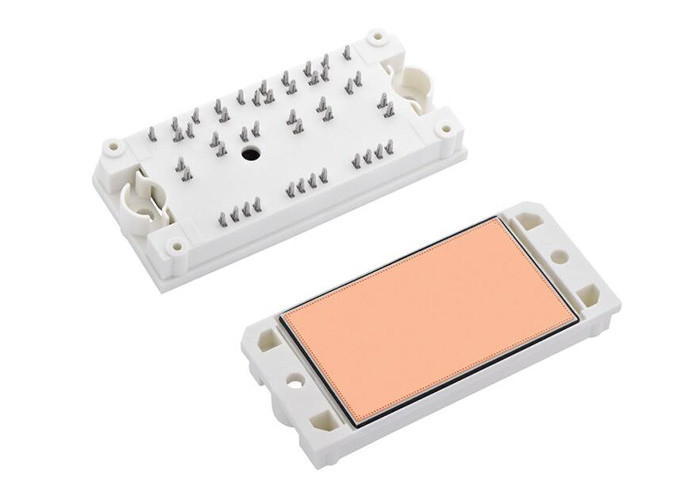

Large Image : NXH40T120L3Q1SG Automotive IGBT Modules 1200V Three Phase

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH40T120L3Q1SG
Document:	NXH40T120L3Q1SG.PDF

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

NXH40T120L3Q1SG Automotive IGBT Modules 1200V Three Phase

Description

Part Number:	NXH40T120L3Q1SG	Input:	Three Phase Bridge Rectifier
Current - Collector Cutoff (Max):	400 µA	Vce(on) (Max) @ Vge, Ic:	2.2V @ 15V, 40A
Configuration:	Three Phase	Size:	82.5 Mm X 37.4 Mm X 12 Mm
Highlight:	NXH40T120L3Q1SG Automotive IGBT Modules , 1200V Automotive IGBT Modules , NXH40T120L3Q1SG

NXH40T120L3Q1SG Automotive IGBT Modules 1200V Three Phase

Automotive IGBT Modules NXH40T120L3Q1SG 1200V Three Phase IGBT Modules

Product Description Of NXH40T120L3Q1SG

NXH40T120L3Q1SG is a power module containing a three channel T−type neutral−point clamped (TNPC) circuit. Each channel has two 1200V, 40A IGBTs with inverse diodes and two 650V, 25A IGBTs with inverse diodes.

Specification Of NXH40T120L3Q1SG

Part Number	NXH40T120L3Q1SG
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 75°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module

Applications Of NXH40T120L3Q1SG

Solar Inverters
UPS
Energy Storage Systems
