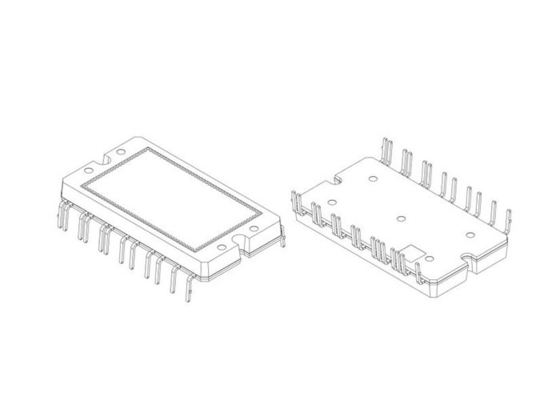

Three Phase Inverter 650V Automotive IGBT Modules NXH50M65L4C2SG

Three Phase Inverter 650V Automotive IGBT Modules NXH50M65L4C2SG

 Three Phase Inverter NXH50M65L4C2SG IGBT Silicon Modules 650V Automotive IGBT Modules​

Product Description Of NXH50M65L4C2SG

NXH50M65L4C2SG is a transfer−molded power module with AI2O3 substrate containing a converter−inverter−PFC circuit consisting of single phase converter with four 75 A, 1600 V rectifiers, six 50 A, 600 V IGBTs with inverse diodes, 2−Channel interleaved PFC containing two 75 A, 650 V PFC IGBT with inverse diode, two 50 A, 650 V PFC diode, and an NTC thermistor.

Specification Of NXH50M65L4C2SG

Schematic Diagram Of NXH50M65L4C2SG

Other Electronic Components In Stock​

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
