Product Details:
|
| Part Number: | NXH25T120L2Q1PTG | Maximum Operating Temperature: | + 150 C |
|---|---|---|---|
| Subcategory: | IGBTs | Configuration: | 3-Phase Inverter |
| Supplier Device Package: | 27-DIP | Mounting Type: | Through Hole |
| Highlight: | Automotive 3 Phase IGBT Module,1200V 81W 3 Phase IGBT Module,Automotive IGBT TNPC Module |
||

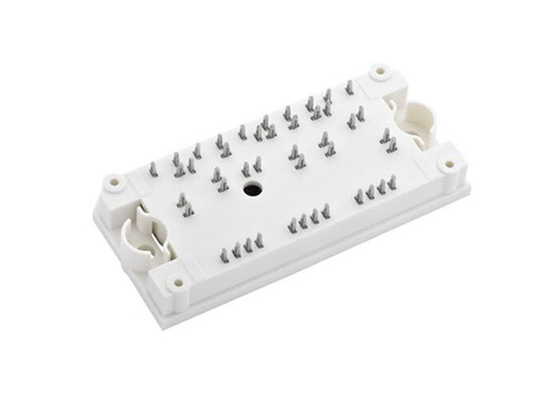

Automotive 3 Phase IGBT Module NXH25T120L2Q1PTG Q1 1200V 81W
Automotive IGBT Modules NXH25T120L2Q1PTG Q1 3-Phase TNPC Module 1200V 81W
Product Description Of NXH25T120L2Q1PTG
NXH25T120L2Q1PTG is a case power module containing a three channel T−type neutral−point clamped (TNPC) circuit. Each channel has a two 1200 V, 25 A IGBTs with inverse diodes and two 650 V, 20 A IGBTs with inverse diodes.
Specification Of NXH25T120L2Q1PTG
| Part Number | NXH25T120L2Q1PTG |
|
Configuration
|
Three Phase Inverter
|
|
Voltage - Collector Emitter Breakdown (Max)
|
1200 V
|
|
Current - Collector (Ic) (Max)
|
25 A
|
|
Power - Max
|
81 W
|
|
Vce(on) (Max) @ Vge, Ic
|
2.5V @ 15V, 25A
|
|
Current - Collector Cutoff (Max)
|
300 µA
|
|
Input Capacitance (Cies) @ Vce
|
8.502 nF @ 20 V
|
Typical Output Characteristics Of NXH25T120L2Q1PTG
