194W Trench Field Stop Dual IGBT Modules 3 Channel NXH300B100H4Q2F2PG

Description

Part Number:	NXH300B100H4Q2F2PG	Operating Temperature:	-40°C ~ 175°C (TJ)
SNTC Thermistor Bcategory:	Yes	Mounting Type:	Chassis Mount
Supplier Device Package:	27-PIM (71x37.4)	Collector- Emitter Voltage VCEO Max:	1 KV
Highlight:	194W Dual IGBT Modules , 1118V Dual IGBT , NXH300B100H4Q2F2PG Trench Field Stop

194W Trench Field Stop Dual IGBT Modules 3 Channel NXH300B100H4Q2F2PG

3 Channel NXH300B100H4Q2F2PG 194W Trench Field Stop Dual IGBT Modules 1118V

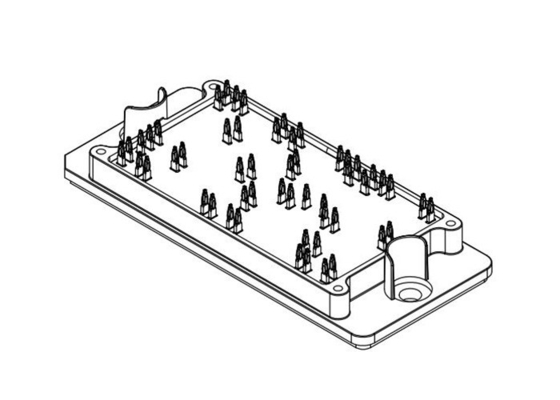

Product Description Of NXH300B100H4Q2F2PG

NXH300B100H4Q2F2PG This high−density, integrated power module combines high−performance IGBTs with 1200 V SiC diode.

Specification Of NXH300B100H4Q2F2PG

Part Number	NXH300B100H4Q2F2PG
IGBT Type	Trench Field Stop
Configuration	Dual, Common Source
Voltage - Collector Emitter Breakdown (Max)	1118 V
Current - Collector (Ic) (Max)	73 A
Power - Max	194 W
Vce(on) (Max) @ Vge, Ic	2.25V @ 15V, 100A
Current - Collector Cutoff (Max)	800 µA
Input Capacitance (Cies) @ Vce	6.323 nF @ 20 V
Input	Standard

Features Of NXH300B100H4Q2F2PG

Low Inductive Layout
3−channel in Q2BOOST Package
Module Design Offers High Power Density
Extremely Efficient Trench with Field Stop Technology
Low Switching Loss Reduces System Power Dissipation
These are Pb−Free Devices
