NXV65HR82DZ1 16-SSIP Power Driver IGBT Module 650V H Bridge

Large Image : NXV65HR82DZ1 16-SSIP Power Driver IGBT Module 650V H Bridge

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXV65HR82DZ1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	16-SSIP
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

NXV65HR82DZ1 16-SSIP Power Driver IGBT Module 650V H Bridge

Description

Part Number:	NXV65HR82DZ1	Type:	MOSFET
Configuration:	H-Bridge	Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Qg - Gate Charge:	79.7 NC	Voltage - Isolation:	5000Vrms
Highlight:	Power Driver IGBT Module , 16-SSIP Driver IGBT Module , NXV65HR82DZ1

NXV65HR82DZ1 16-SSIP Power Driver IGBT Module 650V H Bridge

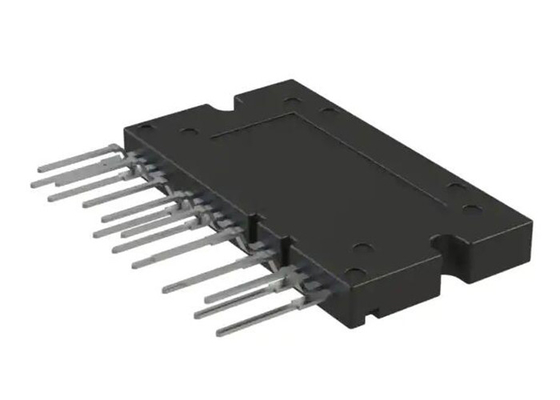

Automotive IGBT Modules NXV65HR82DZ1 16-SSIP Power Driver Module 650V H-Bridge

Product Description Of NXV65HR82DZ1

NXV65HR82DZ1 is H-Bridge MOSFET Automotive Power Module in APM16 Series for LLC and Phase-shifted DC-DC Converter.

Specification Of NXV65HR82DZ1

Part Number:	NXV65HR82DZ1
Technology:	Si
Mounting Style:	Through Hole
Package / Case:	APMCA-16
Transistor Polarity:	N-Channel
Number of Channels:	4 Channel
Vds - Drain-Source Breakdown Voltage:	650 V
Id - Continuous Drain Current:	26 A
Rds On - Drain-Source Resistance:	82 mOhms

Features Of NXV65HR82DZ1

SIP or DIP H−Bridge Power Module for On−board Charger (OBC) in EV or PHEV
5 kV/1 s Electrically Isolated Substrate for Easy Assembly
Creepage and Clearance per IEC60664−1, IEC 60950−1
Compact Design for Low Total Module Resistance

Other Electronic Components In Stock

Part Number	Package
DS26528G	BGA
SFH4250	SMD1210
MC908GP32CFBE	LQFP44
LM4510SD	WSON10
W83310G	SOP-8
TK83361MTL	SOP16

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
