Single N-Channel NVHL040N120SC1 SiC Power Transistors 1200V Integrated Circuit Chip

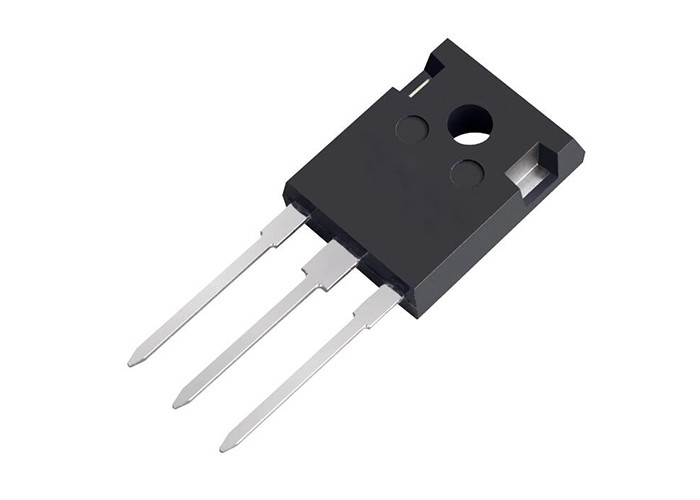

Large Image : Single N-Channel NVHL040N120SC1 SiC Power Transistors 1200V Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NVHL040N120SC1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-247-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Single N-Channel NVHL040N120SC1 SiC Power Transistors 1200V Integrated Circuit Chip

Description

Part Number:	NVHL040N120SC1	Vgs Th - Gate-Source Threshold Voltage:	4.3 V
Pd - Power Dissipation:	348 W	Fall Time:	10.4 Ns
Forward Transconductance - Min:	20 S	Transistor Type:	1 N-Channel

Single N-Channel NVHL040N120SC1 SiC Power Transistors 1200V Integrated Circuit Chip

Product Description Of NVHL040N120SC1

NVHL040N120SC1 is 1200V, 40m, 60A MOSFET - Single N-Channel SiC Power Transistors.

Specification Of NVHL040N120SC1

Part Number:	NVHL040N120SC1
Technology:	SiC
Mounting Style:	Through Hole
Package / Case:	TO-247-3LD
Vds - Drain-Source Breakdown Voltage:	1.2 kV
Id - Continuous Drain Current:	60 A
Rds On - Drain-Source Resistance:	56 mOhms
Vgs - Gate-Source Voltage:	- 15 V, + 25 V

Features Of NVHL040N120SC1

Typ. RDS(on)= 40 m
Ultra Low Gate Charge (typ. QG(tot)= 106 nC)
Low Effective Output Capacitance (typ. Coss= 140 pF)
100% UIL Tested
Qualified According to AEC−Q101
These Devices are RoHS Compliant
