Integrated Circuit Chip NVH4L060N090SC1 Silicon Carbide MOSFETs Transistors TO-247-4

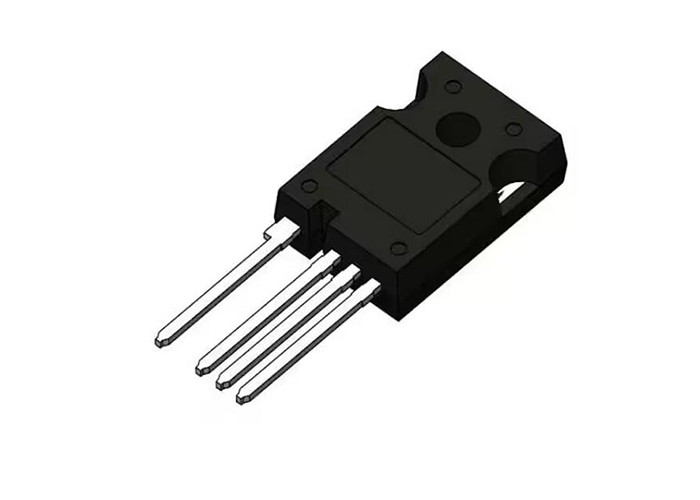

Large Image : Integrated Circuit Chip NVH4L060N090SC1 Silicon Carbide MOSFETs Transistors TO-247-4

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NVH4L060N090SC1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-247-4
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Integrated Circuit Chip NVH4L060N090SC1 Silicon Carbide MOSFETs Transistors TO-247-4

Description

Part Number:	NVH4L060N090SC1	Gate Charge (Qg) (Max) @ Vgs:	87 NC @ 15 V
Vgs(th) (Max) @ Id:	4.3V @ 5mA	Current - Continuous Drain (Id) @ 25°C:	46A (Tc)
Technology:	SiCFET (Silicon Carbide)	Series:	Automotive, AEC-Q101

Integrated Circuit Chip NVH4L060N090SC1 Silicon Carbide MOSFETs Transistors TO-247-4

Product Description Of NVH4L060N090SC1

NVH4L060N090SC1 is 60mohm, 900V Silicon Carbide (SiC) N-Channel MOSFET Transistors, package is TO-247-4L.

Specification Of NVH4L060N090SC1

Part Number	NVH4L060N090SC1
Vgs (Max)	+22V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1770 pF @ 450 V
Power Dissipation (Max)	221W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4

Features Of NVH4L060N090SC1

Typ. RDS(on) = 60 m @ VGS = 15 V
Typ. RDS(on) = 43 m @ VGS = 18 V
Ultra Low Gate Charge (typ. QG(tot)= 87 nC)
Low Effective Output Capacitance (typ. Coss= 113 pF)
100% UIL Tested
AEC−Q101 Qualified and PPAP Capable
