NXH25C120L2C2SG Automotive IGBT Modules 1200V Transfer Molded

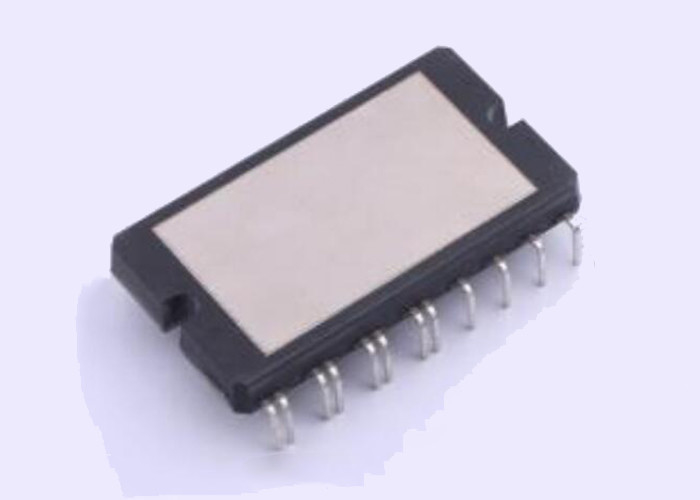

Large Image : NXH25C120L2C2SG Automotive IGBT Modules 1200V Transfer Molded

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH35C120L2C2S1G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	26-PowerDIP Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

NXH25C120L2C2SG Automotive IGBT Modules 1200V Transfer Molded

Description

Part Number:	NXH35C120L2C2S1G	Input Capacitance (Cies) @ Vce:	6.2 NF @ 20 V
Input:	Three Phase Bridge Rectifier	Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole	Package / Case:	26-PowerDIP Module (1.199", 47.20mm)
Highlight:	NXH25C120L2C2SG Automotive IGBT Modules , RoHS Automotive IGBT Modules , Automotive IGBT Power Module

NXH25C120L2C2SG Automotive IGBT Modules 1200V Transfer Molded

NXH25C120L2C2SG 1200V Transfer Molded Power Module 26-DIP Three Phase Inverter

Product Description Of NXH25C120L2C2SG

NXH25C120L2C2SG is a 1200V 25A 20mW transfer−molded power module, IGBT Module Three Phase Inverter with Brake.

Specification Of NXH25C120L2C2SG

Part Number	NXH25C120L2C2SG
Configuration	Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	25 A
Power - Max	20 mW
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 25A
Current - Collector Cutoff (Max)	250 µA

Schematic Diagram Of NXH25C120L2C2SG

NXH25C120L2C2SG Automotive IGBT Modules 1200V Transfer Molded 0
