NXH50C120L2C2ES1G 1.2kV IGBT Module Driver Circuit Three Phase Inverter

Large Image : NXH50C120L2C2ES1G 1.2kV IGBT Module Driver Circuit Three Phase Inverter

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH50C120L2C2ES1G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	26-PowerDIP Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

NXH50C120L2C2ES1G 1.2kV IGBT Module Driver Circuit Three Phase Inverter

Description

Part Number:	NXH50C120L2C2ES1G	Continuous Collector Current At 25°C:	50 A
Collector-Emitter Saturation Voltage:	1.8 V	Collector- Emitter Voltage VCEO Max:	1.2kV
Configuration:	3-Phase Inverter	Product:	IGBT Silicon Modules
Highlight:	1.2kV IGBT Module Driver Circuit , IGBT Module Driver Circuit , NXH50C120L2C2ES1G

NXH50C120L2C2ES1G 1.2kV IGBT Module Driver Circuit Three Phase Inverter

Automotive IGBT Modules NXH50C120L2C2ES1G Three Phase Inverter With Brake 26-DIP

Product Description Of NXH50C120L2C2ES1G

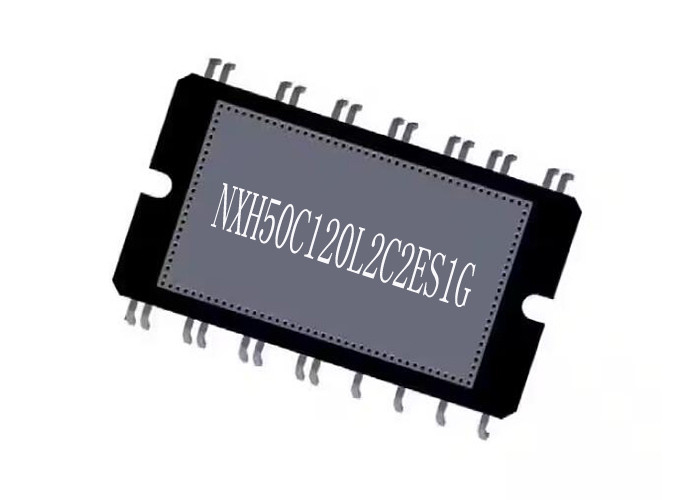

NXH50C120L2C2ES1G is a transfer−molded power module with low thermal resistance substrate containing a converter−inverter circuit consisting of six 50 A, 1600 V rectifiers, six 50A, 1200V IGBTs with inverse diodes, and an NTC thermistor.

Specification Of NXH50C120L2C2ES1G

Part Number:	NXH50C120L2C2ES1G
Gate-Emitter Leakage Current:	400 nA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 150 C
Packaging:	Tube
Product Type:	IGBT Modules

Schematic Diagram Of NXH50C120L2C2ES1G

NXH50C120L2C2ES1G 1.2kV IGBT Module Driver Circuit Three Phase Inverter 0

Other Electronic Components In Stock

Part Number	Package
NCV4276BDSADJR4G	TO263-5
NCP5392EMNR2G	QFN40
NCP4206MNR2G	QFN48
SEMIX653GB176HDS	Module
LTC3776EUF	QFN24
SI4830CDY	SOP-8
