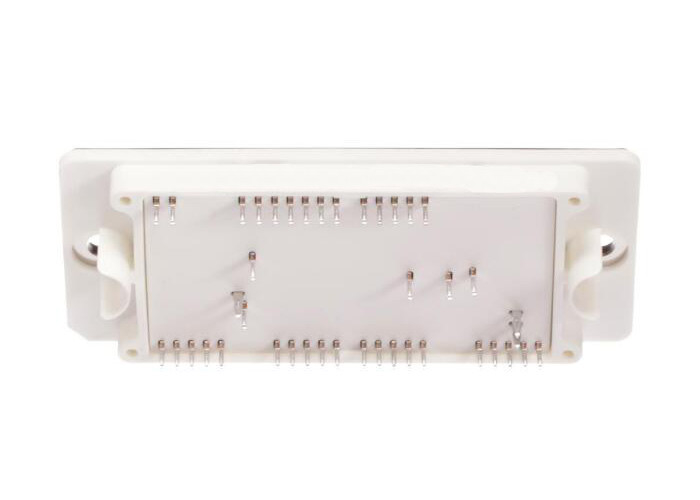

High Denity Automotive IGBT Modules 3 Phase Inverter NXH350N100H4Q2F2P1G

Large Image : High Denity Automotive IGBT Modules 3 Phase Inverter NXH350N100H4Q2F2P1G

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH350N100H4Q2F2P1G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

High Denity Automotive IGBT Modules 3 Phase Inverter NXH350N100H4Q2F2P1G

Description

Part Number:	NXH350N100H4Q2F2P1G	Collector-Emitter Voltage:	1000V
Maximum Power Dissipation (TJ = 150°C):	592W	Continuous Collector Current @ TC = 80°C:	303A
Pulsed Peak Collector Current @ TC = 80°C (TJ = 150°C):	909A	Collector-Emitter Saturation Voltage:	1.63 V, 1.75 V
Highlight:	High Denity Automotive IGBT Modules , 1kV Automotive IGBT Modules , NXH350N100H4Q2F2P1G

High Denity Automotive IGBT Modules 3 Phase Inverter NXH350N100H4Q2F2P1G

3-Phase Inverter NXH350N100H4Q2F2P1G 1kV High Denity IGBT Silicon Modules

Product Description Of NXH350N100H4Q2F2P1G

NXH350N100H4Q2F2P1G is high−denity, integrated power module combines high−performance IGBTs with rugged anti−parallel diodes.

Specification Of NXH350N100H4Q2F2P1G

Part Number:	NXH350N100H4Q2F2P1G
Gate-Emitter Leakage Current:	2 uA
Pd - Power Dissipation:	592 W, 731 W
Minimum Operating Temperature:	- 40 C to + 150 C
Product Type:	IGBT Modules
Subcategory:	IGBTs

Schematic Diagram Of NXH350N100H4Q2F2P1G

High Denity Automotive IGBT Modules 3 Phase Inverter NXH350N100H4Q2F2P1G 0
