NXH35C120L2C2SG Automotive IGBT Modules Three Phase Inverter With Brake

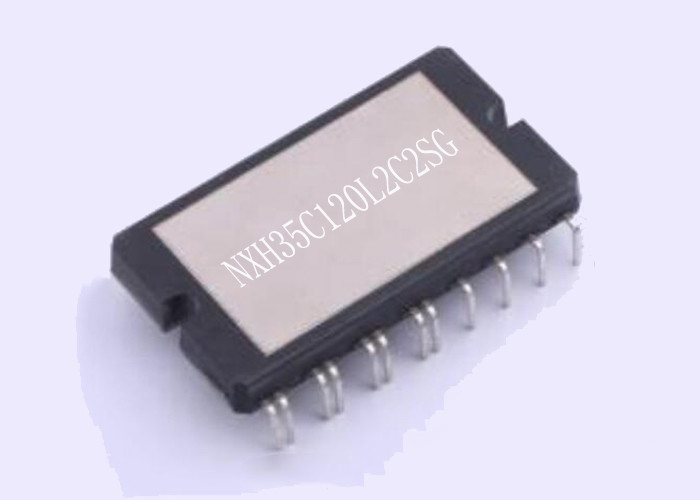

Large Image : NXH35C120L2C2SG Automotive IGBT Modules Three Phase Inverter With Brake

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH35C120L2C2SG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	26-PowerDIP Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

NXH35C120L2C2SG Automotive IGBT Modules Three Phase Inverter With Brake

Description

Part Number:	NXH35C120L2C2SG	Peak Repetitive Reverse Voltage:	1200V
Continuous Forward Current @ Tc = 80°C (TVJmax = 175°C):	35A	Repetitive Peak Forward Current (TJ = 175°C):	105A
Surge Current (10 Ms Sin180°) @ 25°C:	520A	Storage Temperature Range:	−40°C To +125°C
Highlight:	NXH35C120L2C2SG Automotive IGBT Modules , Three Phase Inverter Automotive IGBT Modules , NXH35C120L2C2SG

NXH35C120L2C2SG Automotive IGBT Modules Three Phase Inverter With Brake

Automotive IGBT Modules NXH35C120L2C2SG IGBT Module Three Phase Inverter With Brake

Product Description Of NXH35C120L2C2SG

NXH35C120L2C2SG is 1200V, 35A, 20mW IGBT Module Three Phase Inverter with Brake, Package is 26-PowerDIP Module, Through Hole.

Specification Of NXH35C120L2C2SG

Part Number:	NXH35C120L2C2SG
Collector- Emitter Voltage VCEO Max:	1.2 kV
Collector-Emitter Saturation Voltage:	1.8 V
Continuous Collector Current at 25 C:	35 A
Gate-Emitter Leakage Current:	400 nA
Minimum Operating Temperature:	- 40°C (TJ)
Maximum Operating Temperature:	+ 150°C (TJ)

Features Of NXH35C120L2C2SG

Solderable Pins
Thermistor
Collector−Emitter Voltage: 1200 V
Gate−Emitter Voltage: ±20 V
Pulsed Collector Current: 105A
Continuous Collector Current @ Tc = 80°C (TVJmax = 175°C): 35 A
