NXH50M65L4Q1SG Automotive IGBT Modules 56-PIM Trench Field Stop

Description

Part Number:	NXH50M65L4Q1SG	IGBT Type:	Trench Field Stop
Configuration:	Full Bridge	Current - Collector (Ic) (Max):	48 A
Input Capacitance (Cies) @ Vce:	3.137 NF @ 20 V	Operating Temperature:	175°C (TJ)
Highlight:	NXH50M65L4Q1SG , NXH50M65L4Q1SG Automotive IGBT Modules

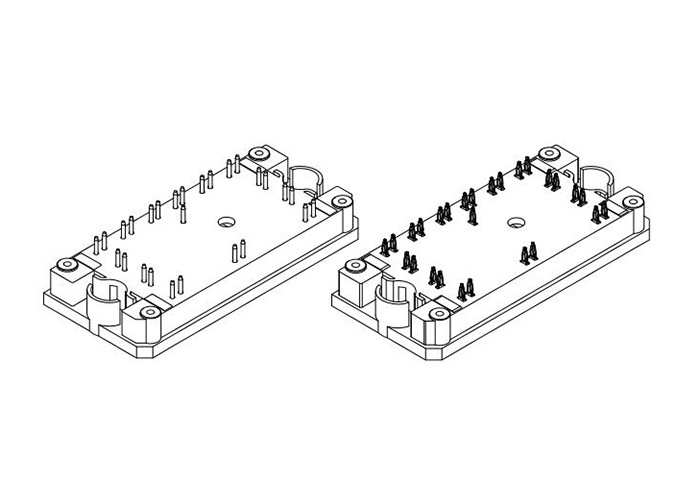

Automotive IGBT Modules NXH50M65L4Q1SG IGBT Module 56-PIM Trench Field Stop

Product Description Of NXH50M65L4Q1SG

NXH50M65L4Q1SG is 650V, 48A, 86W Full Bridge IGBT Module Trench Field Stop, Chassis Mount, package is 56-PIM (93x47).

Specification Of NXH50M65L4Q1SG

Part Number:	NXH50M65L4Q1SG
Product Category:	IGBT Modules
Product:	IGBT Silicon Modules
Configuration:	3-Phase Inverter
Collector- Emitter Voltage VCEO Max:	1.2 kV
Collector-Emitter Saturation Voltage:	1.8 V
Continuous Collector Current at 25 C:	50 A
Gate-Emitter Leakage Current:	400 nA

Schematic Of NXH50M65L4Q1SG

NXH50M65L4Q1SG Automotive IGBT Modules 56-PIM Trench Field Stop 0
