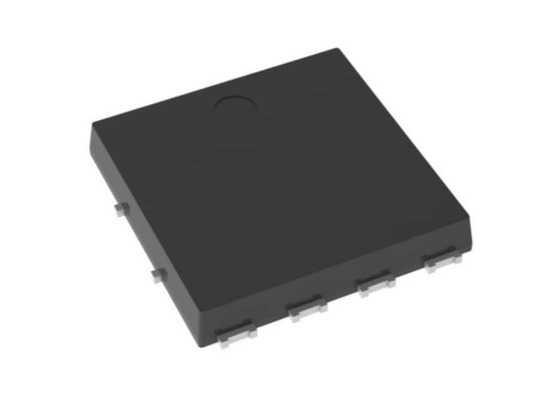

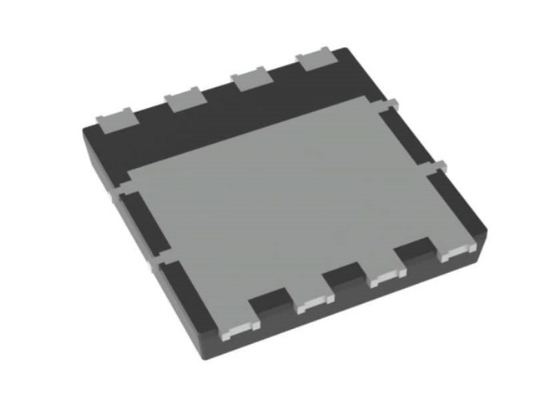

Integrated Circuit Chip NVMTS0D7N04CTXG MOSFET – Power Single N-Channel 40 V 0.67m 420A

Large Image : Integrated Circuit Chip NVMTS0D7N04CTXG MOSFET – Power Single N-Channel 40 V 0.67m 420A

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NVMTS0D7N04CTXG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	8-DFNW
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Integrated Circuit Chip NVMTS0D7N04CTXG MOSFET – Power Single N-Channel 40 V 0.67m 420A

Description

Part Number:	NVMTS0D7N04CTXG	Product Category:	MOSFET
Rds On (Max) @ Id, Vgs:	0.67mOhm @ 50A, 10V	Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	140 NC @ 10 V	Vgs (Max):	±20V

Integrated Circuit Chip NVMTS0D7N04CTXG MOSFET – Power Single N-Channel 40 V 0.67m 420A

Product Description Of NVMTS0D7N04CTXG

NVMTS0D7N04CTXG N-Channel MV MOSFETs are 30V, 40V, and 60V MOSFETs produced using an advanced Power Trench process that incorporates Shielded Gate technology. This process has been optimized to minimize on-state resistance and yet maintain superior switching performance with best in class soft body diode.

Specification Of NVMTS0D7N04CTXG

Part Number:	NVMTS0D7N04CTXG
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	40 V
Id - Continuous Drain Current:	433 A
Rds On - Drain-Source Resistance:	630 uOhms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	1 V
Qg - Gate Charge:	205 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	205 W

Features Of NVMTS0D7N04CTXG

Small Footprint (8x8 mm) for Compact Design
Low RDS(on) to Minimize Conduction Losses
Low QG and Capacitance to Minimize Driver Losses
Power 88 Package, Industry Standard
AEC−Q101 Qualified and PPAP Capable
Wettable Flank Plated Option for Enhanced Optical Inspection
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Marker Diagram Of NVMTS0D7N04CTXG

Integrated Circuit Chip NVMTS0D7N04CTXG MOSFET – Power Single N-Channel 40 V 0.67m 420A 0
