NXH400N100H4Q2F2SG Automotive IGBT Modules Trench Field Stop

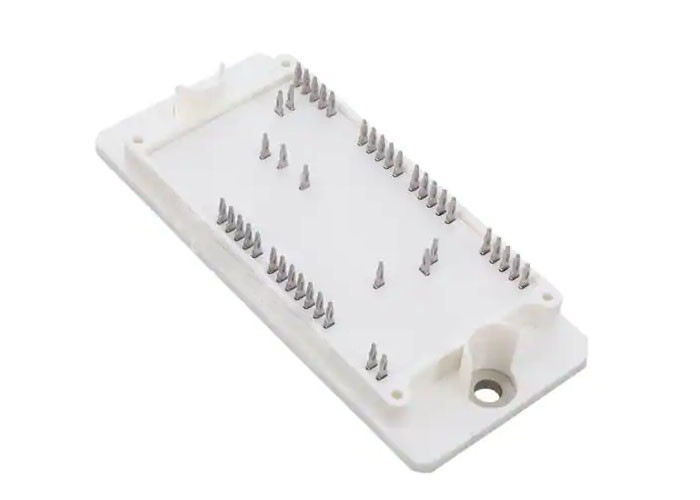

Large Image : NXH400N100H4Q2F2SG Automotive IGBT Modules Trench Field Stop

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH400N100H4Q2F2SG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

NXH400N100H4Q2F2SG Automotive IGBT Modules Trench Field Stop

Description

Part Number:	NXH400N100H4Q2F2SG	IGBT Type:	Trench Field Stop
Configuration:	Three Level Inverter	Voltage - Collector Emitter Breakdown:	1000 V
Current - Collector:	409 A	Power - Max:	959 W
Highlight:	959W Automotive IGBT Modules , Three Level Inverter IGBT Modules , NXH400N100H4Q2F2SG

NXH400N100H4Q2F2SG Automotive IGBT Modules Trench Field Stop

NXH400N100H4Q2F2SG Trench Field Stop Three Level Inverter IGBT Modules

Product Description Of NXH400N100H4Q2F2SG

NXH400N100H4Q2F2SG SiC hybrid modules feature low switching loss reduced system power dissipation, low inductive layout, press-fit, and solder pin options.

Specification Of NXH400N100H4Q2F2SG

Part Number	NXH400N100H4Q2F2SG
Configuration:	3-Phase Inverter
Collector- Emitter Voltage VCEO Max:	1 kV
Collector-Emitter Saturation Voltage:	1.77 V
Continuous Collector Current at 25 C:	409 A, 360 A

Features Of NXH400N100H4Q2F2SG

Extremely Efficient Trench with Field Stop Technology
Low Switching Loss Reduces System Power Dissipation
Module Design Offers High Power Density
