NXH450B100H4Q2F2PG IGBT Module 2 Independent 1000V 101A 234W Chassis Mount

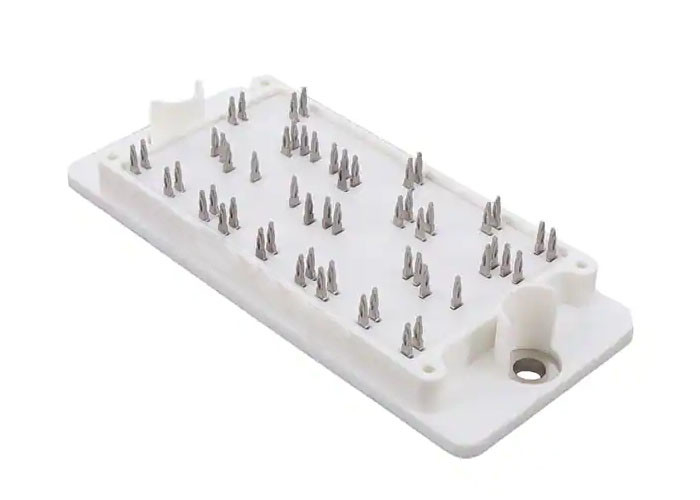

Large Image : NXH450B100H4Q2F2PG IGBT Module 2 Independent 1000V 101A 234W Chassis Mount

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NXH450B100H4Q2F2PG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

NXH450B100H4Q2F2PG IGBT Module 2 Independent 1000V 101A 234W Chassis Mount

Description

Part Number:	NXH450B100H4Q2F2PG	Vce(on) (Max) @ Vge, Ic:	2.25V @ 15V, 150A
Current - Collector Cutoff (Max):	600 µA	Input Capacitance (Cies) @ Vce:	9.342 NF @ 20 V
Input:	Standard	NTC Thermistor:	Yes
Highlight:	NXH450B100H4Q2F2PG , IGBT Power Electronic Modules

NXH450B100H4Q2F2PG 2 Independent 1000V 101A 234W IGBT Module Chassis Mount

Product Description Of NXH450B100H4Q2F2PG

NXH450B100H4Q2F2PG is high−denity, integrated power module combines high−performance IGBTs with rugged anti−parallel diodes.

Specification Of NXH450B100H4Q2F2PG

Part Number	NXH450B100H4Q2F2PG
Gate-Emitter Leakage Current:	2 uA
Pd - Power Dissipation:	959 W, 805 W
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 150 C

Features Of NXH450B100H4Q2F2PG

Low Inductive Layout
Low Package Height
The Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
