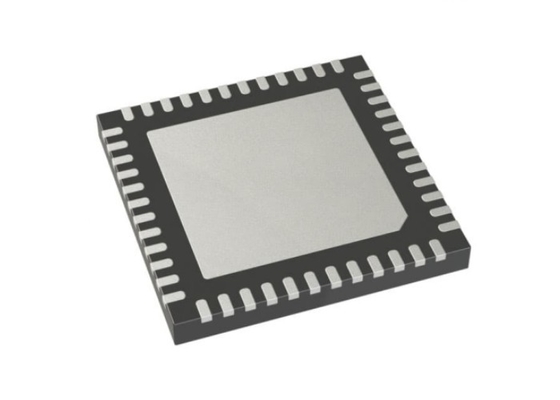

48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs

48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs
48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs
48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs 48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs

Large Image :  48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADIN2111CCPZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFCSP-48
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs

Description
Part Number: ADIN2111CCPZ Product Category: Ethernet ICs
Interface: Serial, SPI Supply Current - Max: 33 MA
Supply Voltage - Max: 3.46 V Supply Voltage - Min: 1.71 V

48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs



Product Description Of ADIN2111CCPZ

The ADIN2111CCPZ 2-Port Ethernet Switches support various routing configurations between the two Ethernet ports and the SPI host port, delivering a flexible solution for line, daisy-chain, or ring network topologies. Additionally, the device permits a cable reach of up to 1700 meters with an ultra-low power consumption of 77mW.



Specification Of ADIN2111CCPZ

Part Number: ADIN2111CCPZ Protocol: Ethernet
Function: Switch Standards: IEEE 802.3, 10 Base-T PHY
Voltage - Supply: 1.71V ~ 3.46V, 3.13V ~ 3.46V Current - Supply: 65mA


Features Of ADIN2111CCPZ

  • Autonegotiation capability
  • Managed or unmanaged configuration
  • Cut through or store and forward operation
  • IEEE 1588 timestamp capture on transmit and receive
  • Diagnostics
  • Frame generator and checker
  • Multiple loopback modes
  • IEEE test mode support
  • Port dedicated statistics counters
  • Link and cable diagnostics
  • 25MHz crystal or external clock input
  • Single or dual supply with 1.8V or 3.3V operation
  • Integrated power supply monitoring and POR
  • 48-lead, 7mm x 7mm LFCSP Small package
  • Temperature range: -40°C to +105°C Extended



Applications Of ADIN2111CCPZ

  • Edge sensors and actuators
  • Condition monitoring and machine connectivity



Functional Block Diagram Of ADIN2111CCPZ

48-LFCSP ADIN2111CCPZ Low Complexity 2-Port Ethernet Switch With Integrated 10BASE-T1L PHYs 0
