Product Description Of ADIN1110BCPZ

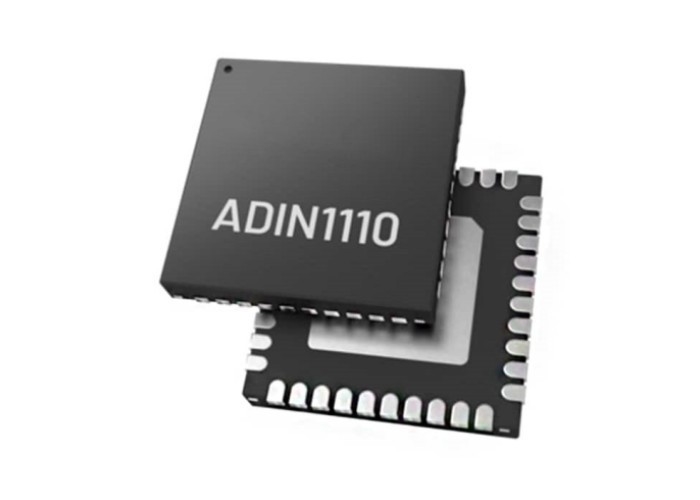

ADIN1110BCPZ Low Power 10BASE-T1L Ethernet MAC-PHY integrates an Ethernet PHY core with a MAC and all the associated analog circuitry, input and output clock buffering. The ADIN1110BCPZ features a single power supply rail of 1.8V or 3.3V and is designed for industrial Ethernet applications.

Specification Of ADIN1110BCPZ

Features Of ADIN1110BCPZ

• Auto-negotiation capability
• Supports intrinsic safety applications
• External termination resistors
• Separate Rx/Tx pins
• Integrated MAC with SPI interface
• SPI interface supporting 10Mb/sec full duplex
• Supports Open Alliance 10BASE-T1x MAC-PHY Serial
• Interface
• MDIO memory map accessible via SPI
• On-chip FIFOs: 20kB receive, 8kB transmit
• Cut-through or Store and forward operation
• Rx high and low priority queues
• IEEE 1588 timestamp support
• Statistics counters
• 16 MAC addresses supported for frame filtering
• 10BASE-T1L IEEE® Std 802.3cg-2019TM compliant
• Supports 1.0V pk-pk and 2.4V pk-pk transmit levels
• Unmanaged configuration using pin strapping, including:
• Master/Slave selection
• Transmit amplitude
• 25MHz crystal oscillator/25MHz external clock input
• Single supply 1.8V/3.3V operation (mode dependent)
• Cable Reach
• 1700 meters+ with 1.0V pk-pk
• 1700 meters+ with 2.4V pk-pk
• Low power consumption – Dual supply 42mW typ
• Link LED
• Small package 40-lead (6mm x 6mm) LFCSP
• Wide temperature range -40°C to +105°C

Applications Of ADIN1110BCPZ

• Field instruments
• Building automation and fire safety
• Factory automation
• Edge sensors and actuators
• Condition monitoring and machine connectivity

Functional Block Diagram Of ADIN1110BCPZ

Pin Configuration Of ADIN1110BCPZ
