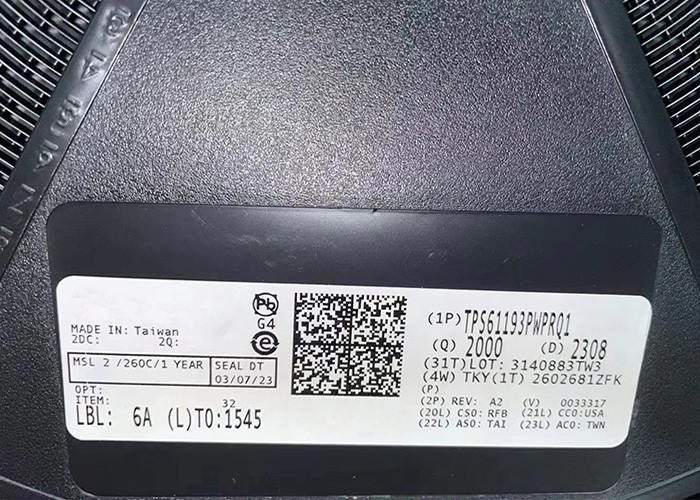

Low-EMI Automotive LED Drivers TPS61193PWPRQ1 20-HTSSOP Integrated Circuit Chip

Low-EMI Automotive LED Drivers TPS61193PWPRQ1 20-HTSSOP Integrated Circuit Chip​

Product Description Of TPS61193PWPRQ1

TPS61193PWPRQ1 is an automotive high-efficiency, low-EMI, easy-to-use LED driver with an integrated DC-DC converter. The DC-DC converter supports both boost and SEPIC mode operation.

Specification Of TPS61193PWPRQ1

Features Of TPS61193PWPRQ1

• Input Voltage Operating Range 4.5 V to 40 V
• Three High-Precision Current Sinks
• Current Matching 1% (Typical)
• LED String Current up to 100 mA per Channel
• Outputs can be Combined Externally for Higher Current Capability
• High Dimming Ratio of 10 000:1 at 100 Hz
• Integrated Boost/SEPIC for LED String Power
• Output Voltage up to 45 V
• Switching Frequency 300 kHz to 2.2 MHz
• Switching Synchronization Input
• Spread Spectrum for Lower EMI

Applications Of TPS61193PWPRQ1

• Automotive Infotainment
• Automotive Instrument Clusters
• Smart Mirrors
• Heads-Up Displays (HUD)
• Central Information Displays (CID)
• Audio-Video Navigation (AVN)

Simplified Schematic Of TPS61193PWPRQ1
