MSCSM120HM31CTBL2NG Automotive IGBT Modules N-Channel Mosfet Array Transistors

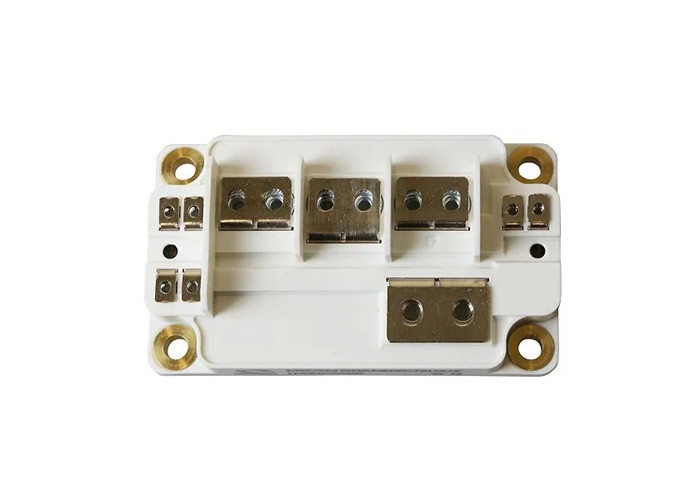

Large Image : MSCSM120HM31CTBL2NG Automotive IGBT Modules N-Channel Mosfet Array Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120HM31CTBL2NG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

MSCSM120HM31CTBL2NG Automotive IGBT Modules N-Channel Mosfet Array Transistors

Description

Part Number:	MSCSM120HM31CTBL2NG	Rds On (Max) @ Id, Vgs:	31mOhm @ 40A, 20V
Vgs(th) (Max) @ Id:	2.8V @ 1mA	Gate Charge (Qg) (Max) @ Vgs:	232nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	3020pF @ 1000V	Power - Max:	310W
Highlight:	MSCSM120HM31CTBL2NG , MSCSM120HM31CTBL2NG Automotive IGBT Modules

Automotive IGBT Modules MSCSM120HM31CTBL2NG N-Channel Mosfet Array Transistors

Product Description Of MSCSM120HM31CTBL2NG

MSCSM120HM31CTBL2NG device is a full bridge 1200 V/79 A silicon carbide (SiC) MOSFET power module.

Specification Of MSCSM120HM31CTBL2NG

Part Number	MSCSM120HM31CTBL2NG
Input Capacitance (Ciss) (Max) @ Vds	3020pF @ 1000V
Power - Max	310W
Operating Temperature	-55°C ~ 175°C (TJ)

Features Of MSCSM120HM31CTBL2NG

SiC Schottky Diode
Zero reverse recovery
Zero forward recovery
