310W Mosfet Array Automotive IGBT Modules MSCSM120DHM31CTBL2NG

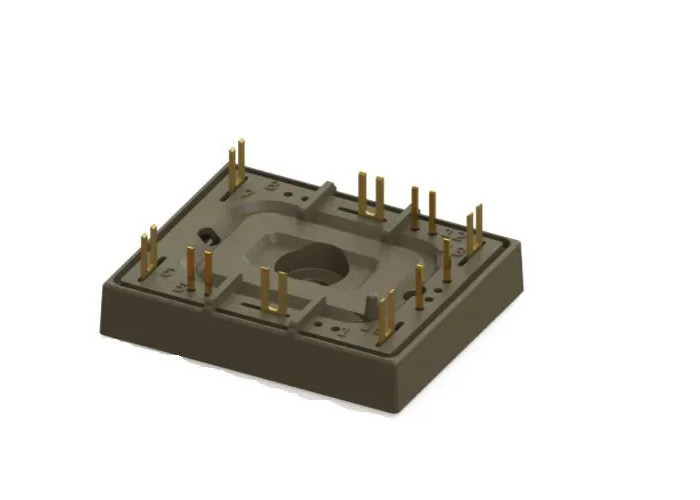

Large Image : 310W Mosfet Array Automotive IGBT Modules MSCSM120DHM31CTBL2NG

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120DHM31CTBL2NG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

310W Mosfet Array Automotive IGBT Modules MSCSM120DHM31CTBL2NG

Description

Part Number:	MSCSM120DHM31CTBL2NG	Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C	Mounting Type:	Chassis Mount
Package:	Module	Technology:	SiC
Highlight:	Mosfet Array Automotive IGBT Modules , 310W Automotive IGBT Modules , MSCSM120DHM31CTBL2NG Mosfet Array

310W Mosfet Array Automotive IGBT Modules MSCSM120DHM31CTBL2NG

Automotive IGBT Modules MSCSM120DHM31CTBL2NG 310W Mosfet Array Transistors

Product Description Of MSCSM120DHM31CTBL2NG

MSCSM120DHM31CTBL2NG Baseless Si Diode Power Module features high blocking voltage, very low stray inductance, ultra-low weight, and low junction to case thermal resistance.

Specification Of MSCSM120DHM31CTBL2NG

Part Number	MSCSM120DHM31CTBL2NG
Power - Max	310W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module

Features Of MSCSM120DHM31CTBL2NG

Temperature independent switching behavior
Positive temperature coefficient on VF
