Screw Mounts Automotive IGBT Modules 79A 310W Mosfet Transistors

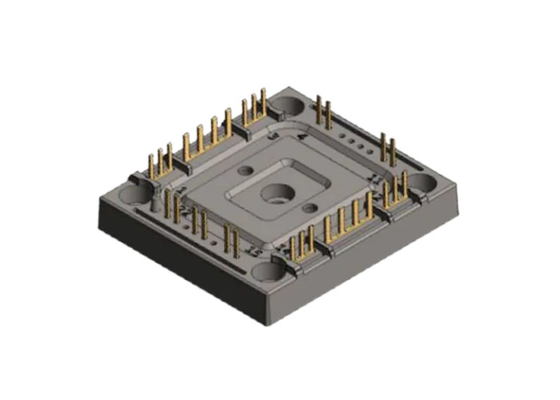

Large Image : Screw Mounts Automotive IGBT Modules 79A 310W Mosfet Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120DUM31CTBL1NG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Screw Mounts Automotive IGBT Modules 79A 310W Mosfet Transistors

Description

Part Number:	MSCSM120DUM31CTBL1NG	Vf - Forward Voltage:	1.5 V At 30 A
Vr - Reverse Voltage:	1.2 KV	Vgs - Gate-Source Voltage:	- 10 V, 25 V
Mounting Style:	Screw Mounts	Fall Time:	25 Ns
Highlight:	Screw Mounts Automotive IGBT Modules , 79A 310W Automotive IGBT Modules , IGBT Mosfet Transistors

Screw Mounts Automotive IGBT Modules 79A 310W Mosfet Transistors

Automotive IGBT Modules MSCSM120DUM31CTBL1NG Mosfet 79A 310W Transistors

Product Description Of MSCSM120DUM31CTBL1NG

MSCSM120DUM31CTBL1NG offer a low profile, direct mounting to the heatsink (isolated package), an internal thermistor for temperature monitoring, and an extended temperature range.

Specification Of MSCSM120DUM31CTBL1NG

Part Number	MSCSM120DUM31CTBL1NG
Configuration:	Dual Common Source
Fall Time:	25 ns
Id - Continuous Drain Current:	79 A
Pd - Power Dissipation:	310 W

Features Of MSCSM120DUM31CTBL1NG

Ultra low weight and profile
Kelvin source for easy drive
Si3N4 substrate with thick copper for improved thermal performance

Other Supply Product Types

Part Number	Package
NCP6924GFCCHT1G	WLCSP-30
ANX7737FH	QFN-64
ADS826E	SSOP28
MT41K256M16TW-107	BGA96
S9S12G64F0VLFR	QFP48
IRMCK343TR	QFP64
