SOT-227-4 Chassis Mount IXYN140N120A4 380A IGBT Module Single Transistors

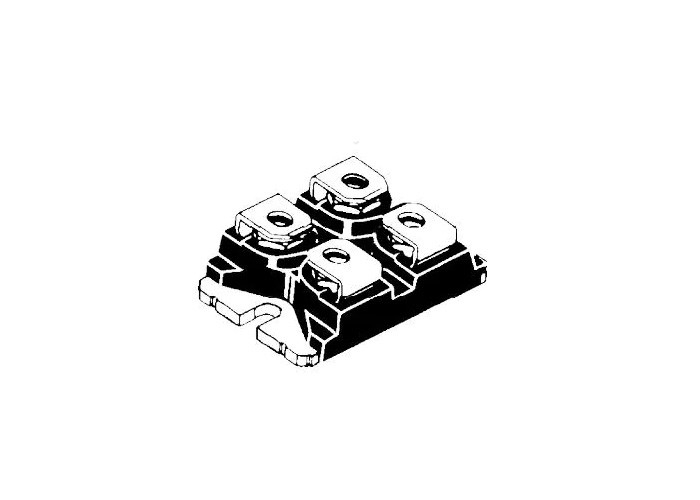

Large Image : SOT-227-4 Chassis Mount IXYN140N120A4 380A IGBT Module Single Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IXYN140N120A4

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-227-4
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

SOT-227-4 Chassis Mount IXYN140N120A4 380A IGBT Module Single Transistors

Description

Part Number:	IXYN140N120A4	Current - Collector (Ic) (Max):	380 A
Gate-Emitter Leakage Current:	200 NA	Power Dissipation:	1.07 KW
Configuration:	Single	Input Capacitance (Cies) @ Vce:	8.3 NF @ 25 V
Highlight:	SOT-227-4 , Chassis Mount Igbt Module

SOT-227-4 Chassis Mount IXYN140N120A4 380A IGBT Module Single Transistors

Product Description Of IXYN140N120A4

IXYN140N120A4 is high-gain IGBTs optimized for ultra-low conduction losses VCE, and for switching frequency of up to 5kHz.

Specification Of IXYN140N120A4

Part Number	IXYN140N120A4
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	1.2 kV
Collector-Emitter Saturation Voltage:	1.7 V
Maximum Gate Emitter Voltage:	- 20 V, 20 V
Continuous Collector Current at 25 C:	380 A

Features Of IXYN140N120A4

International Standard Package
Isolation Voltage 2500V
Optimized for Low Conduction Losses
Square Reverse Bias Safe Operating Areas
