IXGA20N250HV IGBT Transistors 2500V 30A 150W Surface Mount TO-263HV Package

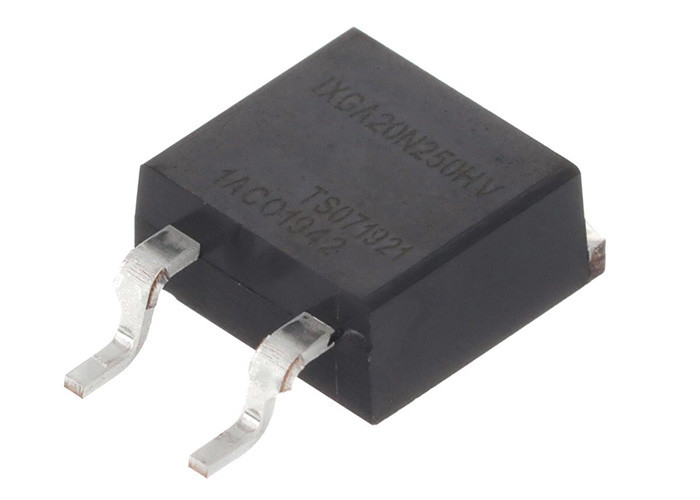

Large Image : IXGA20N250HV IGBT Transistors 2500V 30A 150W Surface Mount TO-263HV Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IXGA20N250HV

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-263-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

IXGA20N250HV IGBT Transistors 2500V 30A 150W Surface Mount TO-263HV Package

Description

Part Number:	IXGA20N250HV	Maximum Operating Temperature:	+ 150 C
Minimum Operating Temperature:	- 55 C	Configuration:	Single
Collector-Emitter Saturation Voltage:	3.1 V	Gate Charge:	53 NC

IXGA20N250HV IGBT Transistors 2500V 30A 150W Surface Mount TO-263HV Package

Product Description Of IXGA20N250HV

IXGA20N250HV high Voltage IGBT (Insulated Gate Bipolar Transistor) provides a square Reverse Bias Safe Operating Area (RBSOA) and 10µs short circuit withstanding capability.

Specification Of IXGA20N250HV

Part Number	IXGA20N250HV
Voltage - Collector Emitter Breakdown (Max)	2500 V
Current - Collector (Ic) (Max)	30 A
Current - Collector Pulsed (Icm)	105 A
Vce(on) (Max) @ Vge, Ic	3.1V @ 15V, 20A
Power - Max	150 W
Input Type	Standard
Gate Charge	53 nC

Features Of IXGA20N250HV

High Peak Current Capability
Low Saturation Voltage
Molding Epoxies Meet UL 94 V-0 Flammability Classification
