Transistors RGT40TS65DGC13 IGBT Trench Field Stop TO-247-3 Integrated Circuit Chip

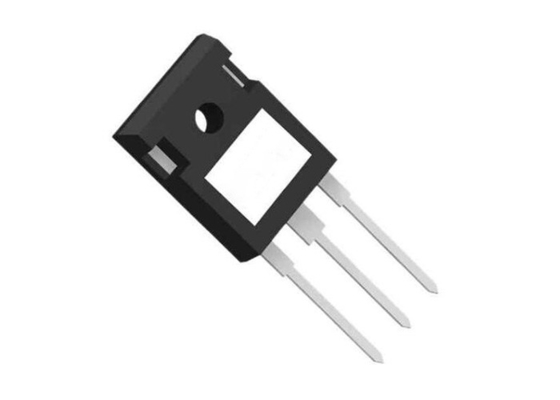

Large Image : Transistors RGT40TS65DGC13 IGBT Trench Field Stop TO-247-3 Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	RGT40TS65DGC13

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-247-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Transistors RGT40TS65DGC13 IGBT Trench Field Stop TO-247-3 Integrated Circuit Chip

Description

Part Number:	RGT40TS65DGC13	Pd - Power Dissipation:	144 W
Diode Forward Current(TC = 25°C):	35A	Gate-Emitter Leakage Current:	200 NA
Diode Pulsed Forward Current:	60A	Collector - Emitter Voltage:	650V

Transistors RGT40TS65DGC13 IGBT Trench Field Stop TO-247-3 Integrated Circuit Chip

Product Description Of RGT40TS65DGC13

RGT40TS65DGC13 is 650V 20A Field Stop Trench IGBT Transistors, package is TO-247-3, Through Hole.

Specification Of RGT40TS65DGC13

Part Number	RGT40TS65DGC13
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	40 A
Current - Collector Pulsed (Icm)	60 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 20A
Power - Max	144 W
Input Type	Standard
Gate Charge	40 nC
Td (on/off) @ 25°C	22ns/75ns
Test Condition	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	58 ns
Operating Temperature	-40°C ~ 175°C (TJ)

Features Of RGT40TS65DGC13

Low Collector - Emitter Saturation Voltage
Low Switching Loss
Short Circuit Withstand Time 5μs
Built in Very Fast & Soft Recovery FRD (RFN - Series)
Pb - free Lead Plating ; RoHS Compliant
