Transistors IXBX50N360HV Single IGBTs Transistors TO-247-3 Integrated Circuit Chip

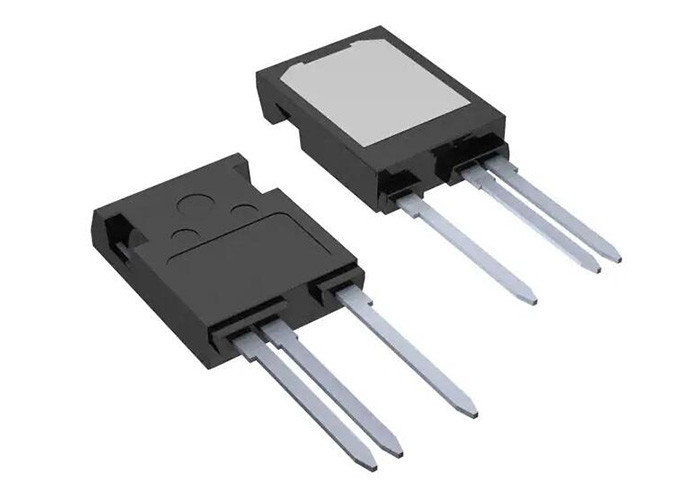

Large Image : Transistors IXBX50N360HV Single IGBTs Transistors TO-247-3 Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IXBX50N360HV

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-247-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Transistors IXBX50N360HV Single IGBTs Transistors TO-247-3 Integrated Circuit Chip

Description

Part Number:	IXBX50N360HV	Reverse Recovery Time (trr):	1.7 µs
Operating Temperature:	-55°C ~ 150°C (TJ)	Collector-Emitter Saturation Voltage:	2.9 V
Mounting Style:	Through Hole	Pd - Power Dissipation:	660 W

Transistors IXBX50N360HV Single IGBTs Transistors TO-247-3 Integrated Circuit Chip

Product Description Of IXBX50N360HV

IXBX50N360HV is High Voltage, High Frequency BiMOSFET™ Monolithic Bipolar MOS Transistor.

Specification Of IXBX50N360HV

Part Number	IXBX50N360HV
Voltage - Collector Emitter Breakdown (Max)	3600 V
Current - Collector (Ic) (Max)	125 A
Current - Collector Pulsed (Icm)	420 A
Vce(on) (Max) @ Vge, Ic	2.9V @ 15V, 50A
Power - Max	660 W
Input Type	Standard
Gate Charge	210 nC
Td (on/off) @ 25°C	46ns/205ns
Test Condition	960V, 50A, 5Ohm, 15V

Applications Of IXBX50N360HV

Uninterruptible Power Supplies (UPS)
Switch-Mode and Resonant-Mode Power Supplies
Capacitor Discharge Circuits
Laser Generators
