Transistors SCTW100N65G2AG Automotive-Grade Silicon Carbide MOSFET 650V 100A 20mOhm

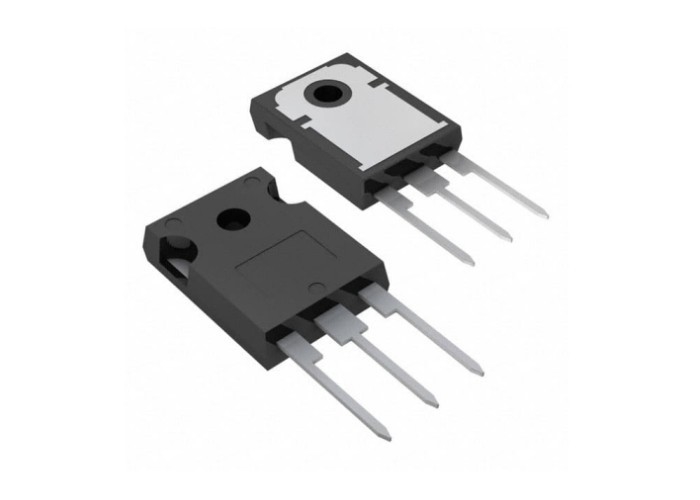

Large Image : Transistors SCTW100N65G2AG Automotive-Grade Silicon Carbide MOSFET 650V 100A 20mOhm

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SCTW100N65G2AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	HiP247
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Transistors SCTW100N65G2AG Automotive-Grade Silicon Carbide MOSFET 650V 100A 20mOhm

Description

Part Number:	SCTW100N65G2AG	FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)	Power Dissipation (Max):	420W (Tc)
Operating Temperature:	-55°C ~ 200°C (TJ)	Mounting Type:	Through Hole

Transistors SCTW100N65G2AG Automotive-Grade Silicon Carbide MOSFET 650V 100A 20mOhm

Product Description Of SCTW100N65G2AG

SCTW100N65G2AG Automotive-grade silicon carbide Power MOSFET 650 V, 100 A, 20 mΩ (typ., TJ = 25 °C), in an HiP247 package.

Specification Of SCTW100N65G2AG

Part Number	SCTW100N65G2AG
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	18V
Rds On (Max) @ Id, Vgs	26mOhm @ 50A, 18V
Vgs(th) (Max) @ Id	5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	162 nC @ 18 V
Vgs (Max)	+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds	3315 pF @ 520 V

Features Of SCTW100N65G2AG

AEC-Q101 compliant
Very high operating temperature (TJ = +200°C)
Very fast and robust built-in body diode
Low capacitance

Applications Of SCTW100N65G2AG

Traction for inverters
DC-DC converters

Functional Block Diagram Of SCTW100N65G2AG

Transistors SCTW100N65G2AG Automotive-Grade Silicon Carbide MOSFET 650V 100A 20mOhm 0
