N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3

N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3
N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3
N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3 N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3

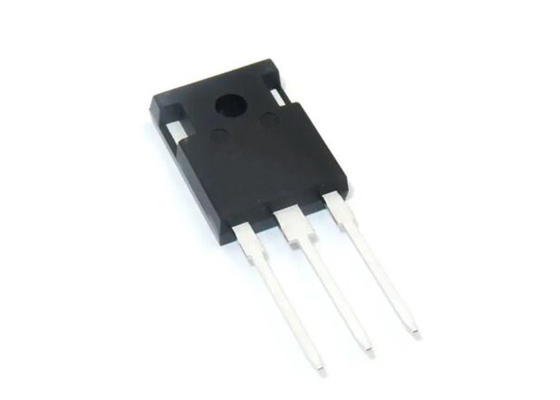

Large Image :  N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TW045N120C,S1F
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3

Description
Part Number: TW045N120C,S1F High Voltage: VDSS = 1200 V
Channel-to-case Thermal Resistance(Max): 0.824°C/W Channel Temperature: 175°C
Low Drain-source On-resistance: RDS(ON) = 45 M Ω (typ.) Low Diode Forward Voltage: VDSF = -1.35 V (typ.)

N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3​



Product Description Of TW045N120C,S1F

TW045N120C,S1F is 1200V 45mohm N-Channel SiC-MOSFET Transistors.



Specification Of TW045N120C,S1F

Part Number: TW045N120C,S1F Vds - Drain-Source Breakdown Voltage: 1.2 KV
Mounting Style: Through Hole Vgs - Gate-Source Voltage: - 10 V, + 25 V
Vgs(Th) (Max) @ Id: 5V @ 1mA Id - Continuous Drain Current: 20 A



Characteristics Curves​ Of TW045N120C,S1F

N-Channel Transistors TW045N120C,S1F Silicon Carbide MOSFET Transistors TO-247-3 0



Other Electronic Components In Stock​

Part Number Package
MAX15005BAUE TSSOP16
L9904TR SOP20
IXEL40N400 TO-247
EFM8BB21F16G-C-QFN20R QFN20
DL-3100 BGA
AMIS42665TJAA1RG SOP8



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
