Transistors SCT4036KW7TL MOSFET 4Th Generation SiC MOSFET 1200V 36mohm 40A

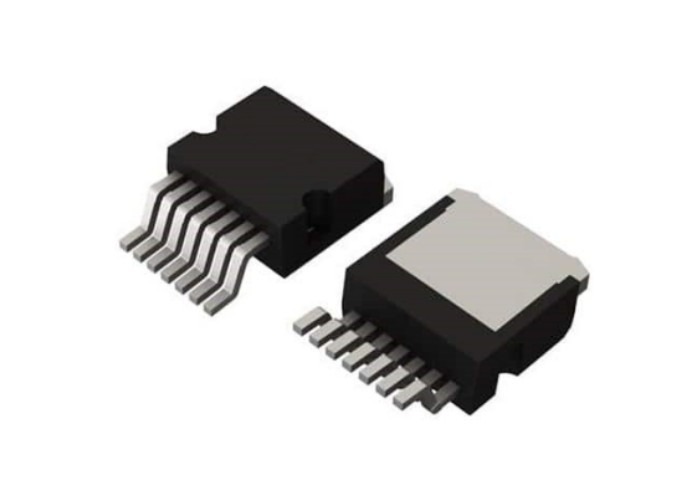

Large Image : Transistors SCT4036KW7TL MOSFET 4Th Generation SiC MOSFET 1200V 36mohm 40A

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SCT4036KW7TL

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-263-7
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Transistors SCT4036KW7TL MOSFET 4Th Generation SiC MOSFET 1200V 36mohm 40A

Description

Part Number:	SCT4036KW7TL	Product Category:	MOSFET
Transistor Polarity:	N-Channel	Vds - Drain-Source Breakdown Voltage:	1.2 KV
Id - Continuous Drain Current:	40 A	Rds On - Drain-Source Resistance:	36 MOhms

Transistors SCT4036KW7TL MOSFET 4Th Generation SiC MOSFET 1200V 36mohm 40A

Product Description Of SCT4036KW7TL

SCT4036KW7TL N-Ch SiC power MOSFET is a 1200V, 36mΩ MOSFET in a TO-263-7L package. The SCT4036KW7TL is simple to drive and easy to parallel with fast reverse recovery.

Specification Of SCT4036KW7TL

Part Number	SCT4036KW7TL
Drive Voltage (Max Rds On, Min Rds On)	18V
Rds On (Max) @ Id, Vgs	47mOhm @ 21A, 18V
Vgs(th) (Max) @ Id	4.8V @ 11.1mA
Gate Charge (Qg) (Max) @ Vgs	91 nC @ 18 V
Vgs (Max)	+21V, -4V
Input Capacitance (Ciss) (Max) @ Vds	2335 pF @ 800 V
Power Dissipation (Max)	150W
Operating Temperature	175°C (TJ)

Features Of SCT4036KW7TL

Low on-resistance
Fast switching speed
Simple to drive
Pb-free lead plating; RoHS compliant

Applications Of SCT4036KW7TL

Solar inverters
Switch mode power supplies

lInner Circuit Of SCT4036KW7TL

Transistors SCT4036KW7TL MOSFET 4Th Generation SiC MOSFET 1200V 36mohm 40A 0
