TO-247-3 Through Hole Transistors SCT3120ALGC11 Electronic Integrated Circuits

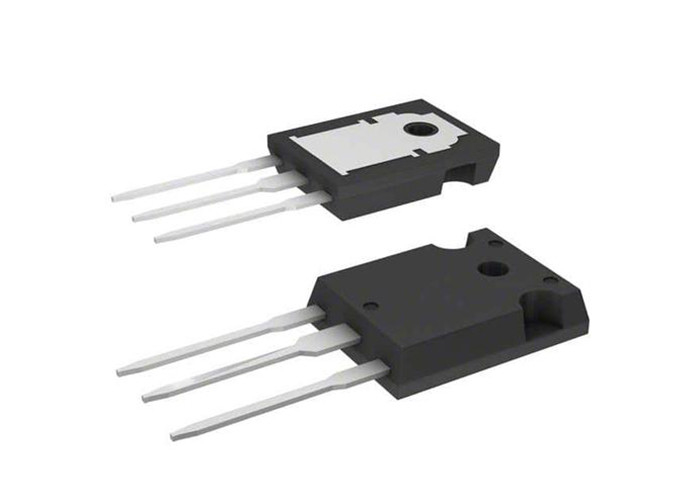

Large Image : TO-247-3 Through Hole Transistors SCT3120ALGC11 Electronic Integrated Circuits

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SCT3120ALGC11

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-247-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

TO-247-3 Through Hole Transistors SCT3120ALGC11 Electronic Integrated Circuits

Description

Part Number:	SCT3120ALGC11	Recommended Drive Voltage:	18V
Pulsed Drain Current:	52A	Continuous Drain Current:	21A
Gate Input Resistance:	18Ω	Total Gate Charge:	38nC

TO-247-3 Through Hole Transistors SCT3120ALGC11 Electronic Integrated Circuits

Product Description Of SCT3120ALGC11

SCT3120ALGC11 is N-Channel Transistors 650 V 21A (Tc) 103W (Tc) Through Hole TO-247N.

Specification Of SCT3120ALGC11

Part Number	SCT3120ALGC11
Vgs - Gate-Source Voltage:	- 4 V, + 22 V
Vgs th - Gate-Source Threshold Voltage:	2.7 V
Qg - Gate Charge:	38 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	103 W

Features Of SCT3120ALGC11

2.5V or 4V gate-source threshold range
16.7nC to 67nC gate charge range
-55°C to +150°C operating temperature range
59W to 104W power dissipation range
